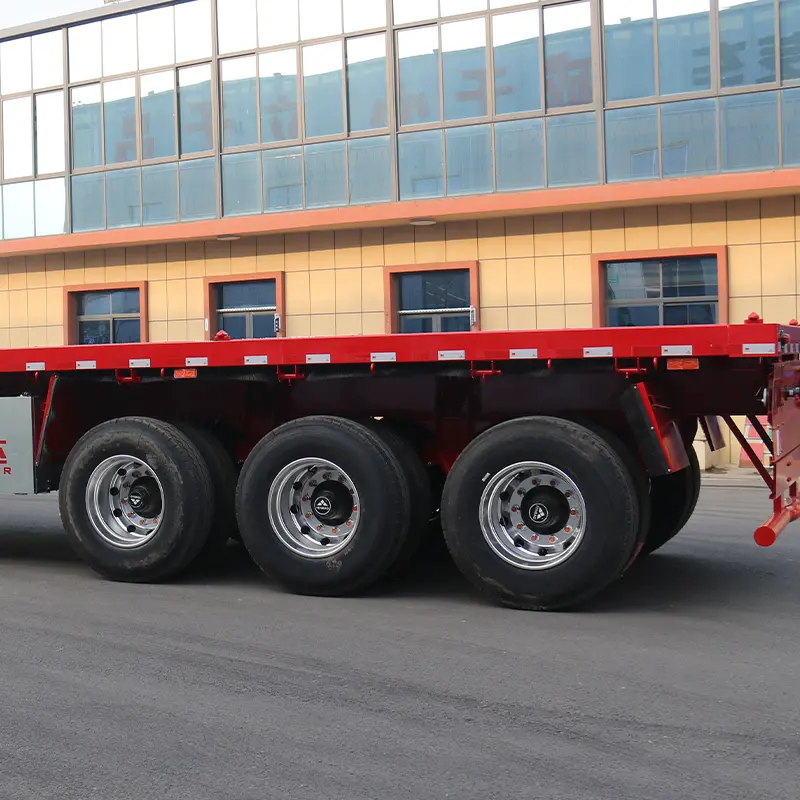

SHODAILER 2025 3 AXLE 40 FT CONTAINER TRANSPORT FLATBED TRUCK TRAILER Manufacturers, Factory
Product Description
📋
Technical Specifications
| Name | 40 FT Flatbed semi trailer |
| Dimension | 12500*2500*1550mm |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Twist locks | 4 / 8 / 12 sets |
| Functions | Transport container, loose cargo, bulk cargo, etc |
🚛
Product Overview
The flatbed trailer is a versatile transport solution designed specifically to carry bulk cargo and containers between shipping facilities and terminals. By definition, it features a long, sturdy flat platform available in lengths of 20ft, 40ft, 48ft, or 53ft. These trailers are primary tools for container transportation, supporting logistical operations across ships, ports, highways, transit stations, and multimodal transport networks including bridges and tunnels.
❓ Frequently Asked Questions
1. What is the maximum payload capacity of the 40 FT flatbed trailer?
The trailer is available in different configurations to support payloads of 40 tons, 60 tons, or 80 tons, depending on your specific transport requirements.
2. What types of containers can be transported using this trailer?
It is primarily designed for 20ft and 40ft container transportation, equipped with 4, 8, or 12 sets of twist locks to secure the cargo.
3. What braking systems are integrated into the trailer?
The trailers utilize high-quality KEMI or WABCO braking systems featuring a combination of four double and two single air chambers for enhanced safety.
4. Can I choose between different suspension types?
Yes, we offer both mechanical suspension and air suspension options to suit different road conditions and cargo sensitivity.
5. What materials are used for the trailer floor?
The floor is constructed from durable diamond steel plate, available in thicknesses of 3mm, 4mm, or 5mm to ensure long-term wear resistance.
6. What brands of axles and tires are used?
We use industry-leading brands such as Fuwa or BPW for axles, and tires from Triangle, Double Coin, or Linglong to ensure reliability and performance.
