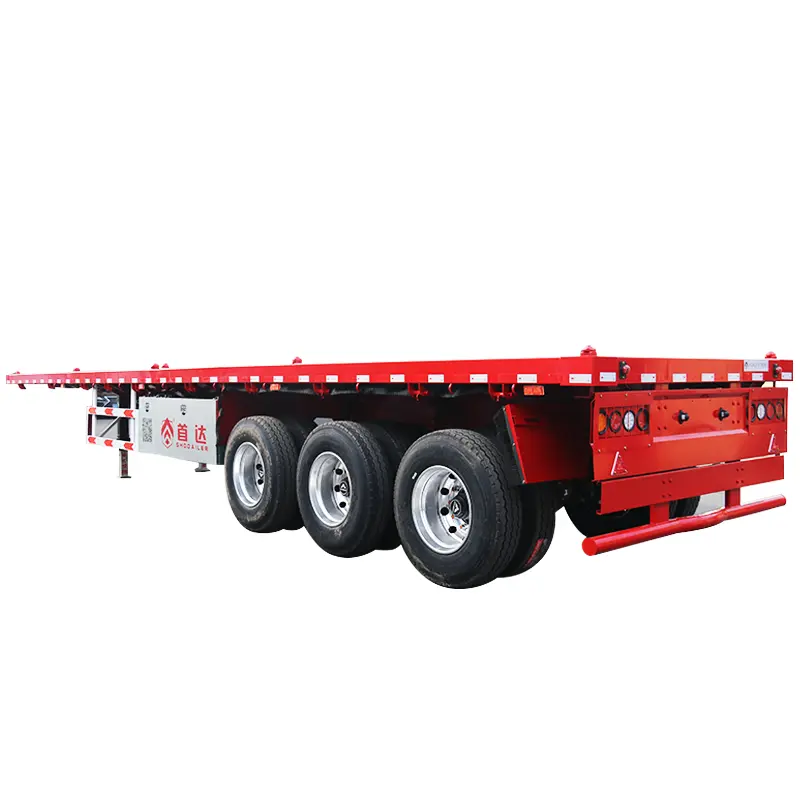

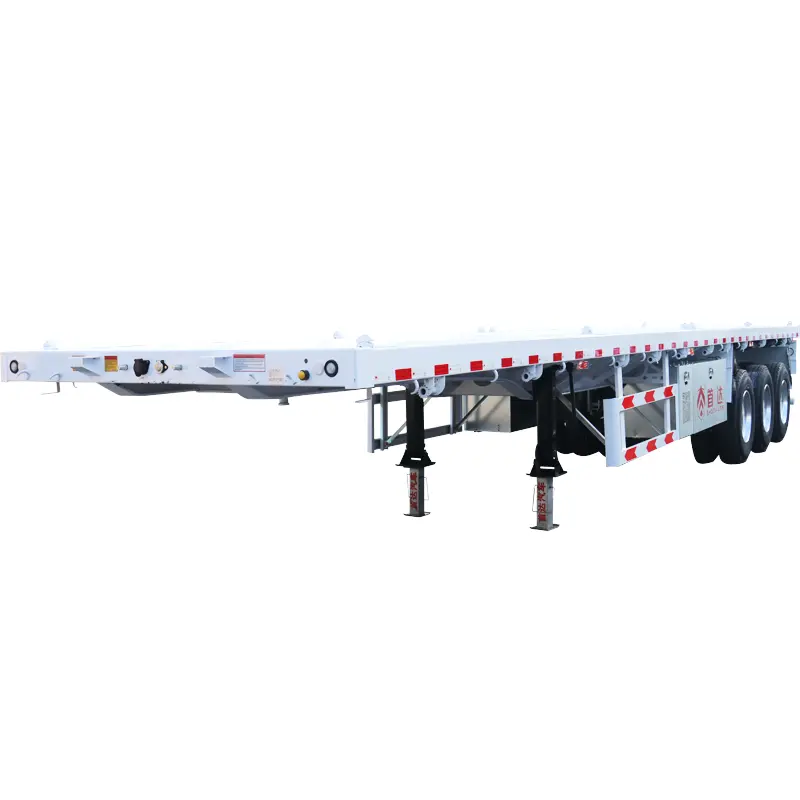

High-Quality With Front Flap Flatbed Transport Semi Trailer Factory, CKD
Product Description
Product Specifications
| Name | 40 FT Flatbed semi trailer |
| Dimension | 12500*2500*1550mm |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Twist locks | 4 / 8 / 12 sets |
| Functions | Transport container, loose cargo, bulk cargo, etc |
Key Advantages
1
High strength steel material is used to manufacture the flatbed trailer, ensuring higher loading capacity and a longer service life.
2
The trailer floor features a checker plate design, keeping bulk cargo stable during transit.
3
Durable mechanical widened spring suspension ensures maximum stability and safety on the road.
4
Polyurethane paint provides a beautiful finish and effective protection against rust, extending the life of the vehicle.
5
High-quality container locks ensure the stability and safety of various loads.
Application & Function
The tri axle trailer is meticulously designed with a steel frame construction to safely transport cargoes. It includes a lighting system, brakes, and tires optimized for specific height and weight capacities. These platform trailers are ideal for transferring cargo at warehouses. When changing transport modes (like moving from trailer to boat), goods can remain in the box, eliminating the need for repacking.
The loading area size is determined by standard container dimensions, featuring twist lock devices at all four corners. These bogie trailers are specialized for container transport, offering superior quality control and structural integrity.
Frequently Asked Questions
What is the maximum payload for this flatbed trailer?
The trailer is available in different configurations with payload capacities of 40 tons, 60 tons, and up to 80 tons.
What types of cargo can be transported?
It is designed for standard containers, loose cargo, bulk cargo, and other general transport equipment.
How are containers secured to the trailer?
The trailer is equipped with 4, 8, or 12 sets of high-quality twist locks corresponding to standard container corners.
What makes the suspension system durable?
We use a mechanical widened spring suspension or optional air suspension to ensure stability and safety during heavy-duty transport.
How does the trailer resist rust and corrosion?
The vehicle is finished with polyurethane paint, which provides an effective protective barrier against rust and environmental damage.
What is the floor material of the trailer?
The floor is made of 3mm, 4mm, or 5mm diamond steel plate (checker plate) for enhanced cargo stability.
