China 40FT Flatbed Semi trailers in Tanzania warehouse Factory, SKD
Product Description
Product Details
| Name | 40 FT Flatbed semi trailer |
| Dimension | 12500*2500*1550mm |
| Payload | 40ton, 60ton, 80ton |

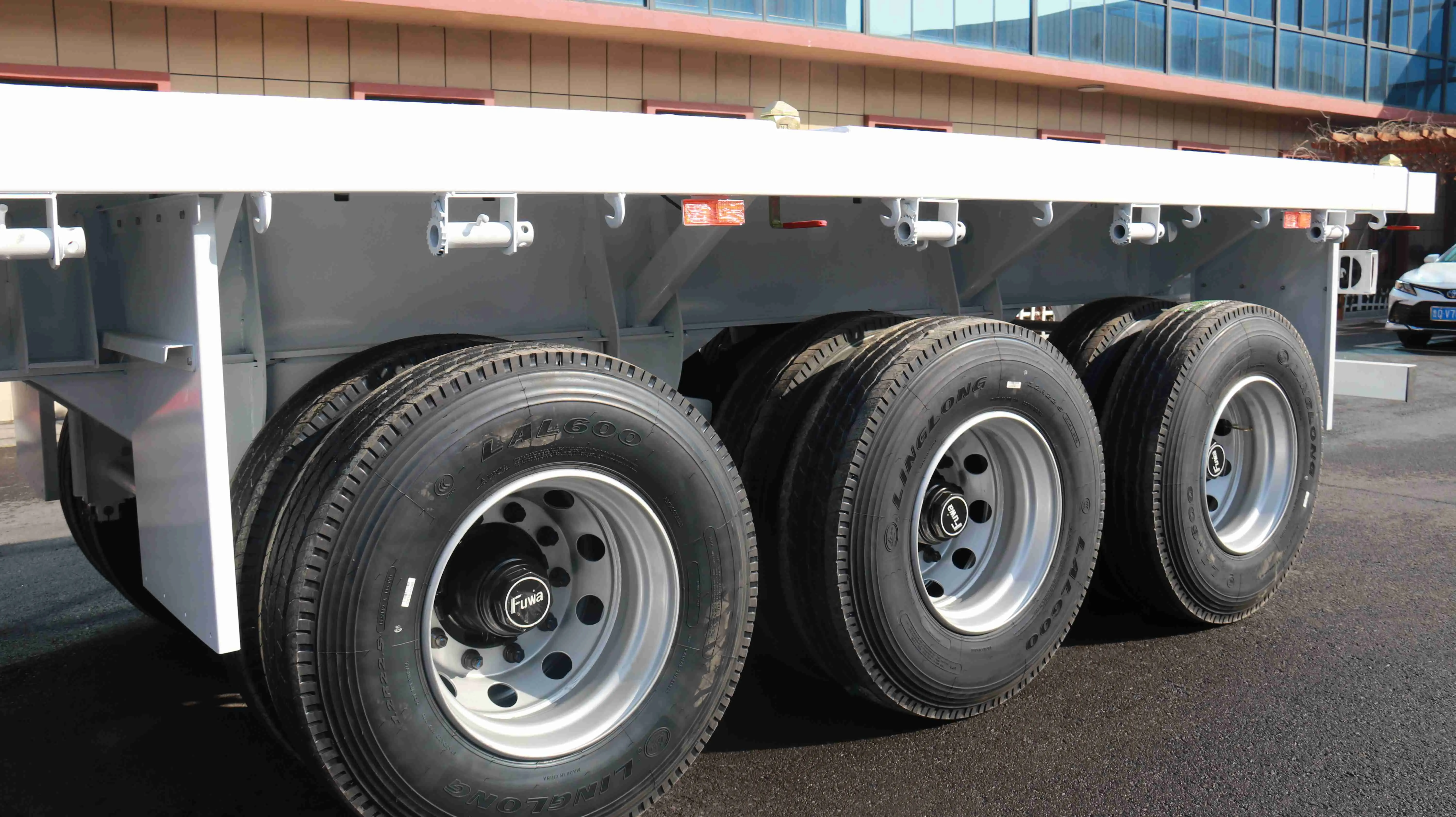

| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |

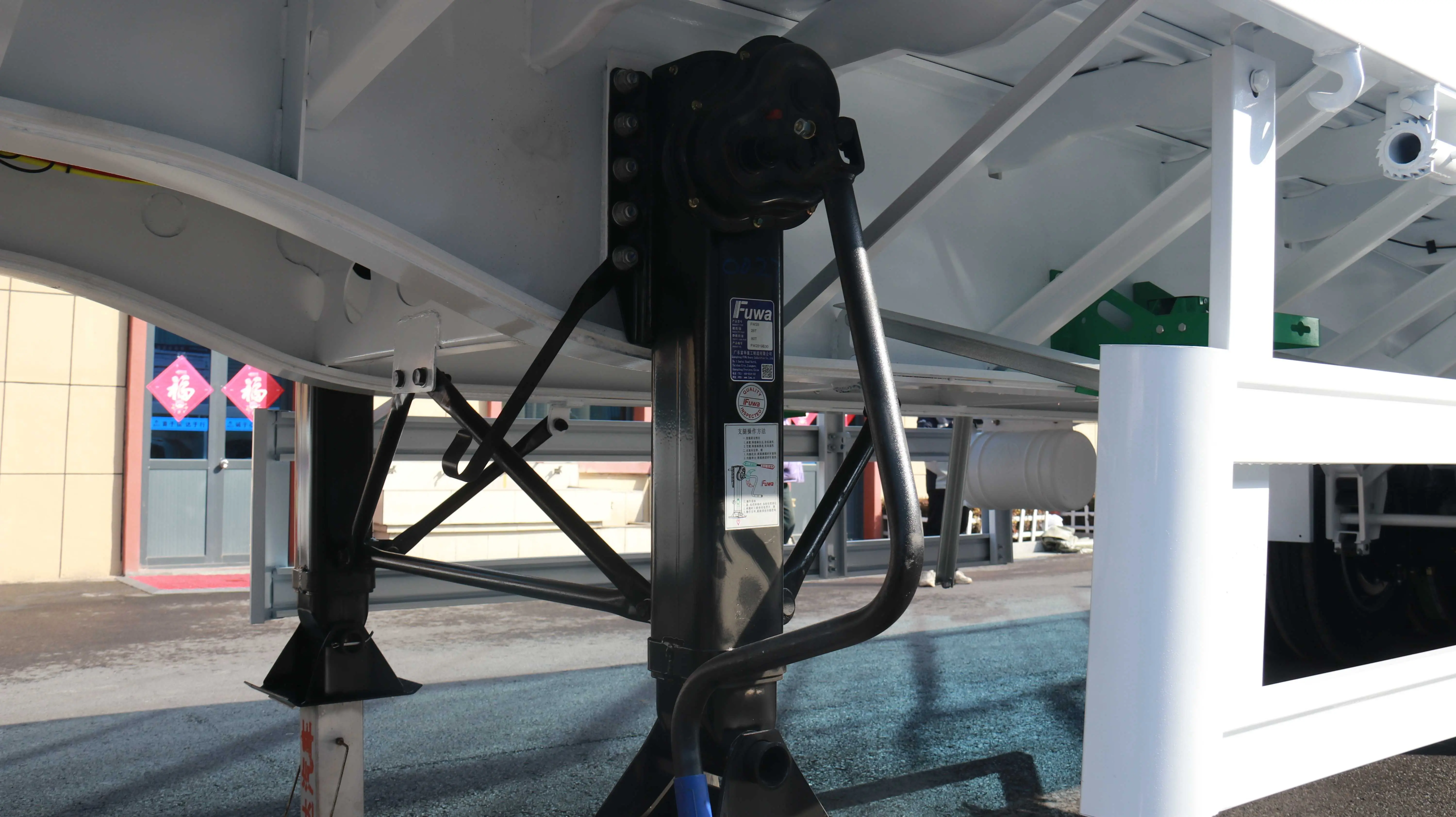

| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Twist locks | 4 / 8 / 12 sets |
| Functions | Transport container, loose cargo, bulk cargo, etc |
The function of a tri axle trailer for sale is made possible through its structure’s design and manufacture. Basically, it is a transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires. It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another.
Use platform trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them.
The size of the container trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container. Flatbed bogie trailers are special trailers for transporting containers.
As a professional manufacturer, we have provided many tri axle trailers for many countries. We have many more advantages on the prices and quality control.
Frequently Asked Questions
What is the maximum payload capacity of the 40 FT flatbed trailer?
The trailer is available in different configurations to support payloads of 40 tons, 60 tons, and up to 80 tons, depending on your specific transport requirements.
What types of cargo can be transported using this flatbed trailer?
It is primarily designed for standard containers (20ft or 40ft), but it is also ideal for transporting loose cargo, bulk goods, and other industrial equipment.
How are containers secured on the trailer?
The trailer is equipped with high-quality twist locks (available in sets of 4, 8, or 12) placed at standard intervals to securely fix containers in place during transit.
What braking systems and axle brands are used?
We use industry-leading components including KEMI or WABCO brake systems and Fuwa or BPW axles (13T/16T/20T) to ensure maximum safety and durability.
Is the suspension system customizable?
Yes, you can choose between a heavy-duty mechanical leaf spring suspension or an air suspension system based on the road conditions and cargo sensitivity.
What is the material used for the trailer floor?
The floor is constructed from high-strength diamond steel plate, available in thicknesses of 3mm, 4mm, or 5mm to provide a non-slip and durable loading surface.
