High-Quality 40Ft Tri Axle Container Skeleton Trailer Manufacturers, CKD
Product Description
📋
Product Details
| Name | Skeleton semi trailer |
| Dimension | 20ft / 40ft / 45ft |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Functions | Transport different size of containers |

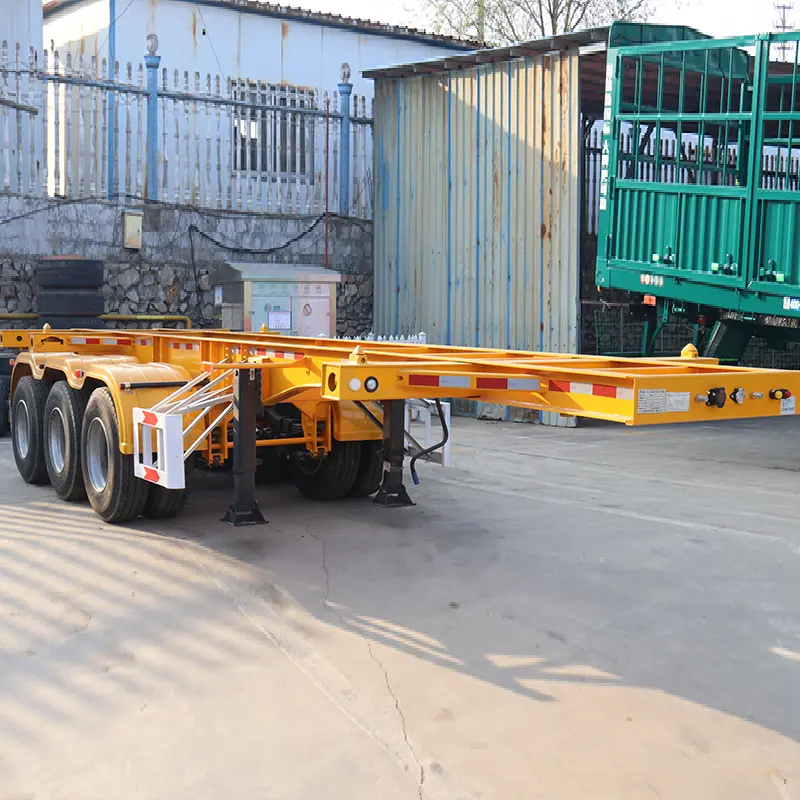

The 40ft 3axle container skeletal trailer is the best option for buyers to transport standard containers (20, 40ft), and other goods.
This 12m skeletal trailer for sale could be used for transporting 20ft or 40ft standard container, and the 12m skeletal trailer for sale adopt the JOST landing gear and WABCO valve, world-famous brand components.
The 12m skeletal trailer main beam can improve the loading capacity by 20%. It is more torsion-resistant and anti-bump, remaining stable and safe even on bad road conditions. This design increases durability and balances the load stresses more evenly for a longer service life.
❓
Frequently Asked Questions
What types of containers can this skeletal trailer carry?
This skeletal trailer is designed to transport standard 20ft, 40ft, and 45ft containers efficiently and safely.
What is the maximum payload capacity available?
We offer different configurations with payload capacities of 40 tons, 60 tons, and up to 80 tons depending on your requirements.
What brands of components are used in the trailer?
The trailer utilizes high-quality components from world-famous brands, including JOST landing gears, WABCO braking valves, and Fuwa or BPW axles.
How does the main beam design improve performance?
The reinforced main beam increases loading capacity by 20% and provides superior torsion resistance, making it more stable on uneven road surfaces.
Is the suspension system customizable?
Yes, you can choose between a standard mechanical suspension or an air suspension system based on your cargo and transport environment.
What braking system is installed for safety?
The trailer is equipped with a reliable braking system featuring KEMI or WABCO components, including four double and two single air chambers for maximum safety.
