China Cargo-secure Anti-slip Flatbed Semi-Trailer Supplier, SKD

SHODAILER semi-trailer, a benchmark of flagship quality! This anti-slip flatbed semi-trailer, with its innovative anti-slip technology and stable load-bearing design, leads the industry's development trend in the market. It has become a preferred equipment in the logistics and transportation field, enjoying widespread favor and high praise from users. Every detail reflects the ultimate pursuit of cargo safety, making the entire transportation process more reliable and reassuring.​

Product Description

📋 Product Specifications
Name 40 FT Flatbed semi trailer
Dimension 12500*2500*1550mm
Payload 40ton, 60ton, 80ton
Tire 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles 13T/16T/20T Fuwa, BPW
King Pin 2 inch or 3.5 inch JOST Brand
Brake System KEMI, WABCO with Four double Two single air chamber
Landing Gears Standard 28 Ton, Fuwa, JOST
Suspension Mechanical suspension, Air suspension
Floor 3mm, 4mm, 5mm diamond steel plate
Twist locks 4 / 8 / 12 sets
Functions Transport container, loose cargo, bulk cargo, etc

As a professional manufacturer, we have supplied a large number of tri axle trailers to numerous countries, taking pride in distinct advantages in both pricing and quality control. The commitment to offering competitive prices without compromising on quality has established a reputation as a trusted partner for businesses worldwide.

⚙️ Structural Excellence

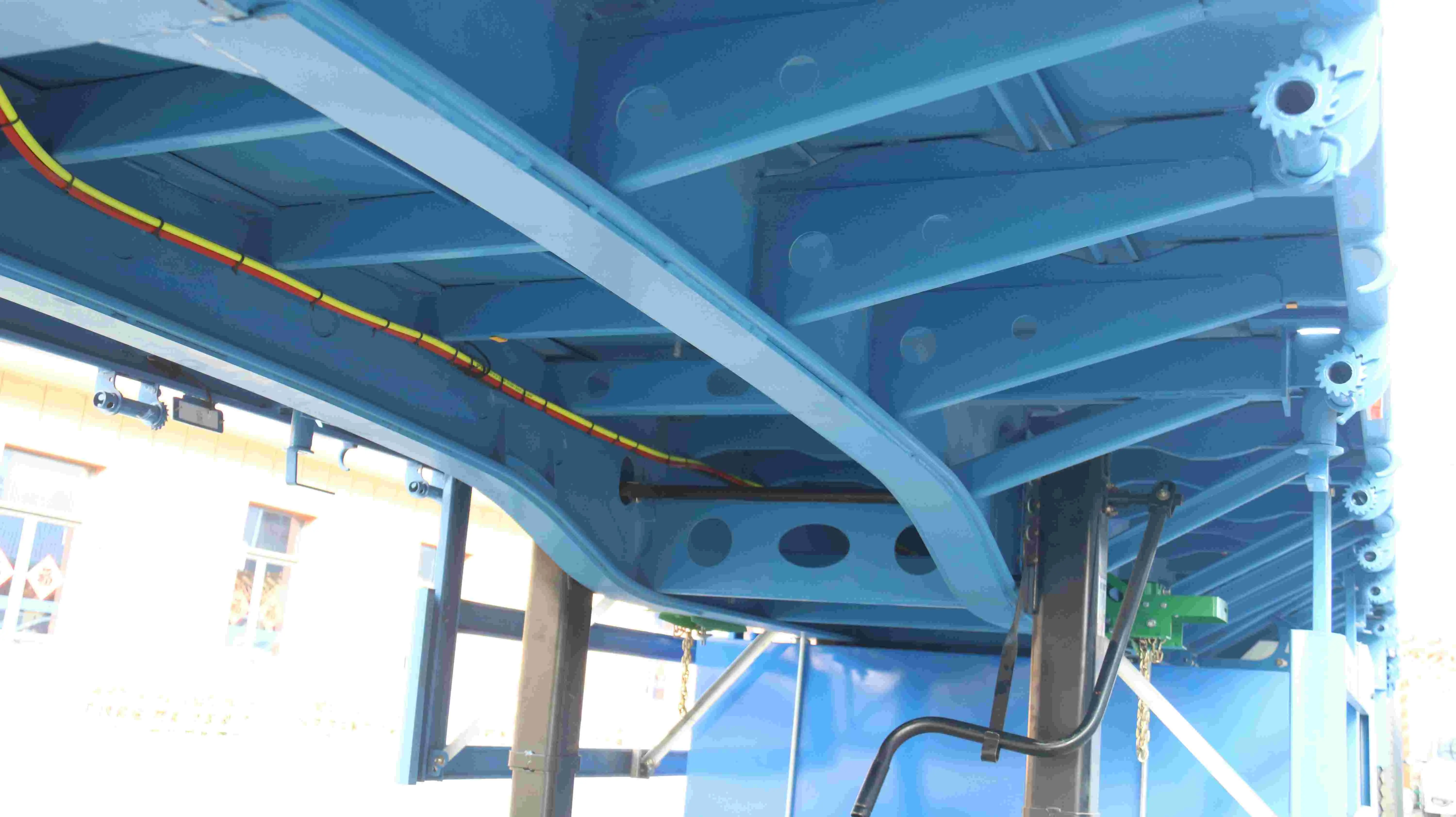

The 40ft flatbed trailer stands out due to its exceptional construction. It adopts low-carbon high-strength alloy steel T700 for the main beam, a material that not only grants it a higher carrying capacity but also ensures a service life of more than 10 years, providing long-term value and reliability.

The tilted supports are designed to be closely arranged, with each one overlapping the next, effectively sharing the stress on the main beam. The distance between these supports is less than 500 mm, further enhancing the structural integrity and load-bearing capability.

🛣️ Driving Stability

The tri axle 40 ft flatbed container carrier trailer boasts a relatively wide wheelbase, thanks to the extended rear axle. This design feature significantly improves its driving and steering stability, outperforming ordinary double-tire trailers. Whether navigating through busy urban streets or cruising on highways, this trailer offers a smooth and secure transportation experience.

Frequently Asked Questions
What is the maximum payload capacity of the 40ft flatbed semi-trailer?
The trailer is available in different configurations to support payloads of 40 tons, 60 tons, or 80 tons depending on your specific transport requirements.
What material is used for the trailer's main beam?
The main beam is constructed using T700 low-carbon high-strength alloy steel, which provides superior carrying capacity and a long service life.
How long is the expected service life of this trailer?
Due to the high-quality alloy steel and robust structural design, the trailer is built to last for more than 10 years under normal operating conditions.
What makes this trailer more stable than standard models?
It features an extended rear axle and a wider wheelbase, which significantly enhances stability during steering and high-speed driving compared to ordinary trailers.
What types of cargo can be transported using this flatbed?
This versatile trailer is designed to transport shipping containers (using 4, 8, or 12 twist locks), loose cargo, and bulk cargo effectively.
Are there different suspension options available?
Yes, the trailer can be equipped with either mechanical suspension or air suspension based on the terrain and cargo sensitivity.
