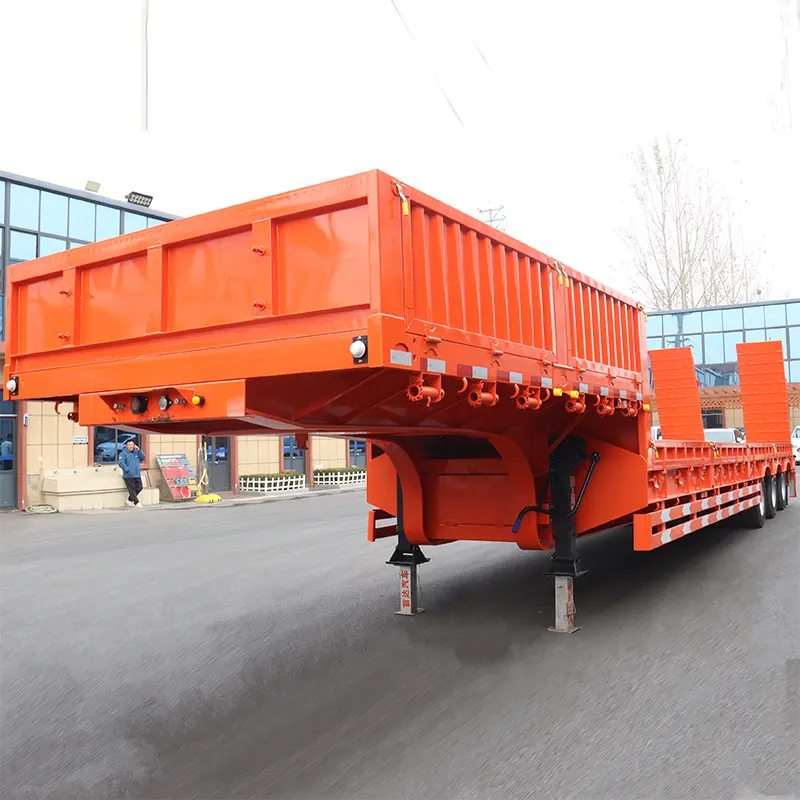

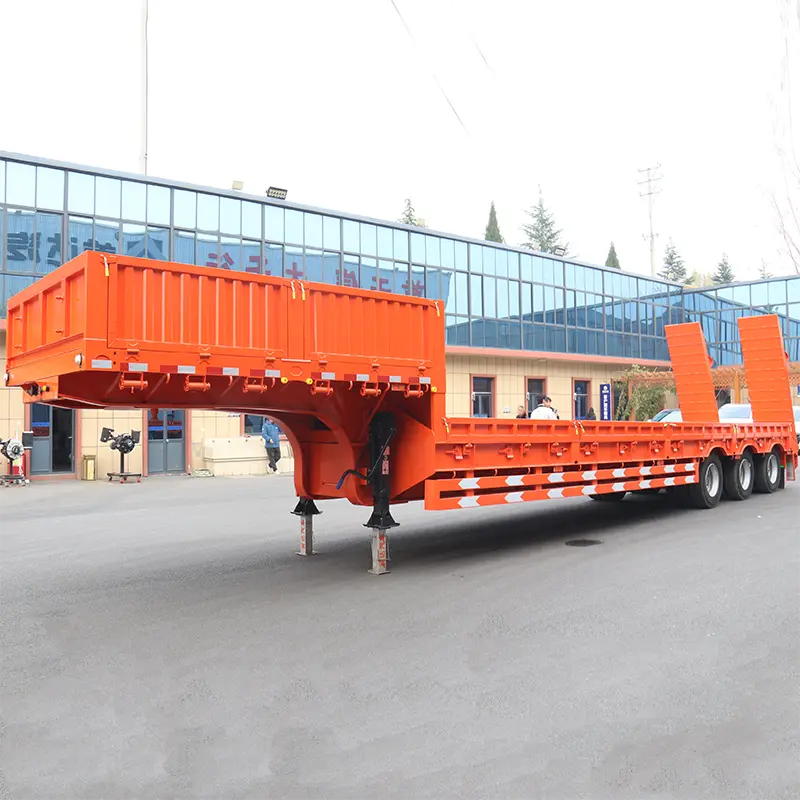

China Lowboy Semi Trailer
Product Description
Technical Specifications
| Name | Heavy duty lowboy semi trailer |
| Dimension | 13000mm * 3000mm * 3400mm (customized) |
| Payload | 60ton, 80ton, 100ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm smooth plate |
| Functions | Transport heavy machinery, bulk cargo etc. |
🛡️
Low bed semi trailer can satisfy the concentrated force, the anti-bump, and the distortion resistance by adopting High Strength Steel Material. This ensures that Excavator Trailers have a long service life and avoids unnecessary maintenance.
💎
The floor plate of the semi low loader trailer is a 5mm diamond plate. The floor plate is engineered to be exceptionally strong and durable, ensuring it remains resistant to deformation under heavy loads.
Frequently Asked Questions
What is the maximum load capacity of this trailer?
The lowboy semi trailer is designed for heavy-duty tasks with payload options of 60 ton, 80 ton, and up to 100 ton depending on your specific configuration needs.
Can the dimensions of the trailer be customized?
Yes, while the standard dimension is 13000mm * 3000mm * 3400mm, we offer customization options to fit your specific cargo and transport requirements.
What material is used for the main structure?
We use High Strength Steel Material for the chassis and main beams to provide excellent distortion resistance and a long service life under heavy stress.
What types of suspension systems are available?
You can choose between a heavy-duty mechanical suspension or a specialized air suspension system based on the terrain and the sensitivity of the machinery being transported.
How durable is the floor plate for heavy machinery?
The trailer features a 5mm diamond plate floor. This high-thickness plate is specifically designed to handle concentrated forces from excavators and heavy equipment without deforming.
Which axle brands are used on this trailer?
We utilize top-tier axle brands such as Fuwa and BPW (13T/16T/20T) to ensure maximum reliability and safety during long-distance transport.
