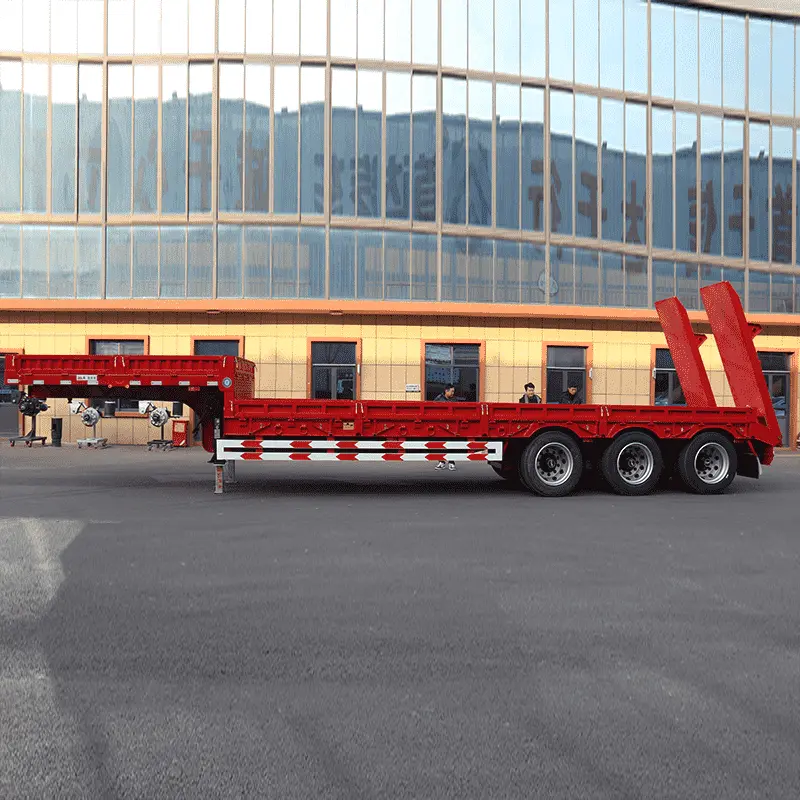

SHODAILER 100 Ton Low Bed Semi trailer Factory, SKD
Product Description
Technical Specifications
| Name | Low bed semi trailer |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Functions | Transport common goods, heavy equipment like excavator etc |
| Dimension | 13750*3000*1600mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
Product Overview
The low plate semi-trailer series products are professionally engineered for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, and power plant equipment. These trailers offer a wide range of uses, ensuring efficiency and speed in diverse transportation scenarios.
Advanced Engineering: The vehicle utilizes computer-aided design software to optimize flexibility. The frame bearing surface is designed according to specific user requirements to accommodate various types of special cargo securely.
Specifically designed without fence plates, the low plate semi-trailer is widely utilized for medium and long-distance cargo transportation, providing the stability needed for oversized loads.

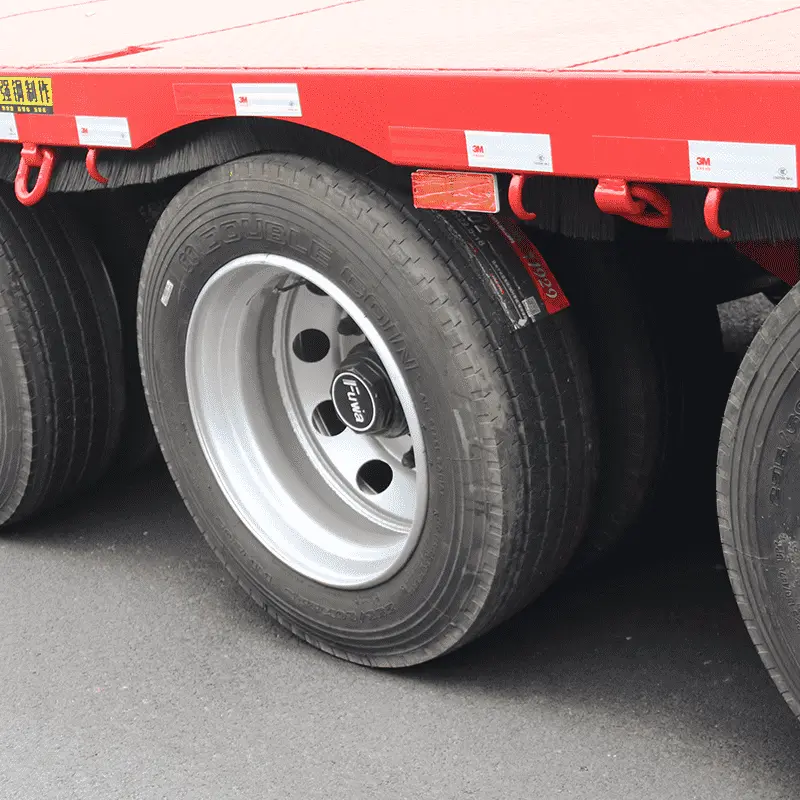

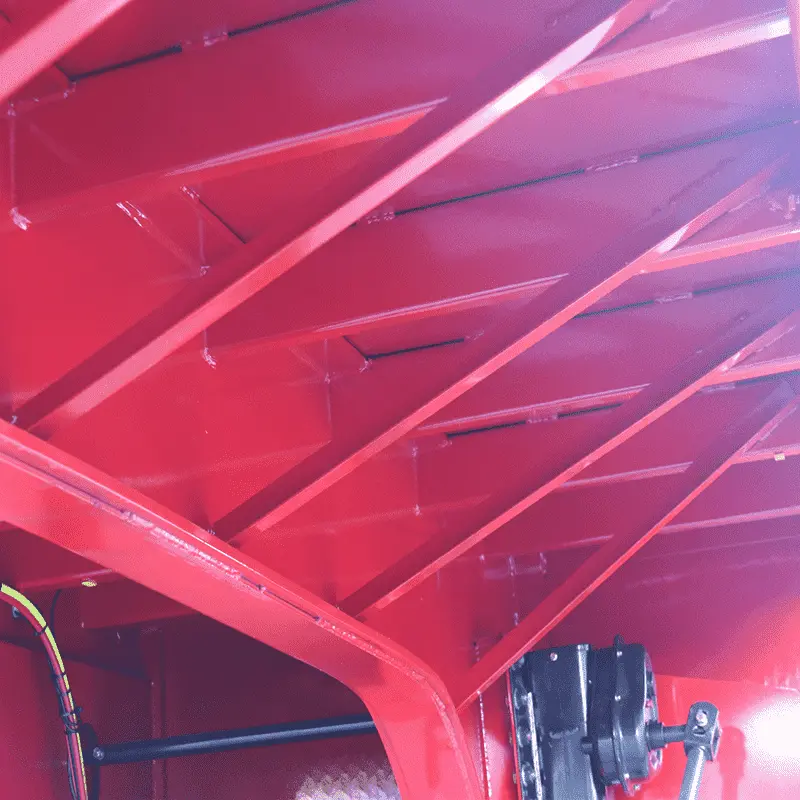

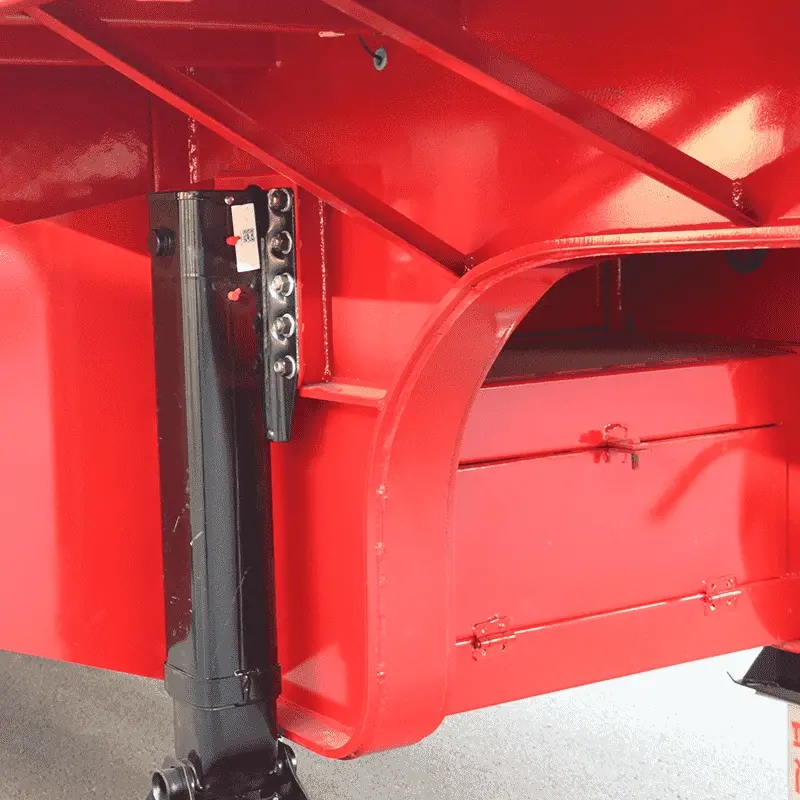

Product Visuals
Frequently Asked Questions
What is the maximum payload capacity of the low bed semi trailer?
Our low bed semi trailers are available in multiple capacities, including 40-ton, 60-ton, and 80-ton options to suit different heavy-duty requirements.
Can the dimensions of the trailer be customized?
Yes, while the standard dimension is 13750*3000*1600mm, we provide customization services to adjust the frame bearing surface and size based on your specific transportation needs.
What types of cargo are these trailers best suited for?
They are ideal for transporting heavy machinery such as excavators, large tanks, power plant equipment, and oversized highway construction materials.
Which braking systems are installed in these trailers?
We utilize high-quality braking systems from KEMI and WABCO, featuring four double and two single air chambers for enhanced safety.
What suspension options do you offer?
Depending on your road conditions and cargo weight, you can choose between a heavy-duty mechanical suspension or a smoother air suspension system.
What is the thickness of the floor plate?
The floor is constructed using durable diamond steel plates, available in thicknesses of 3mm, 4mm, or 5mm to provide maximum grip and durability.
