SHODAILER A good companion for shipping containers Factory, CKD

1 / 3

SHODAILER A good companion for shipping containers Factory, CKD

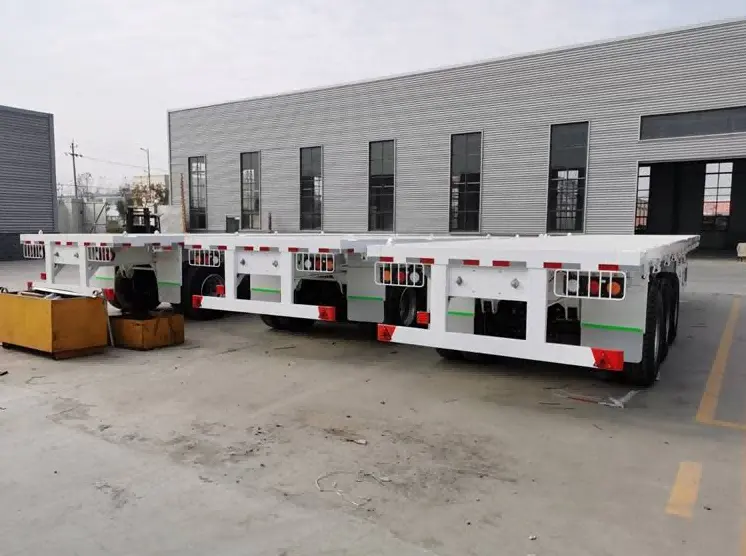

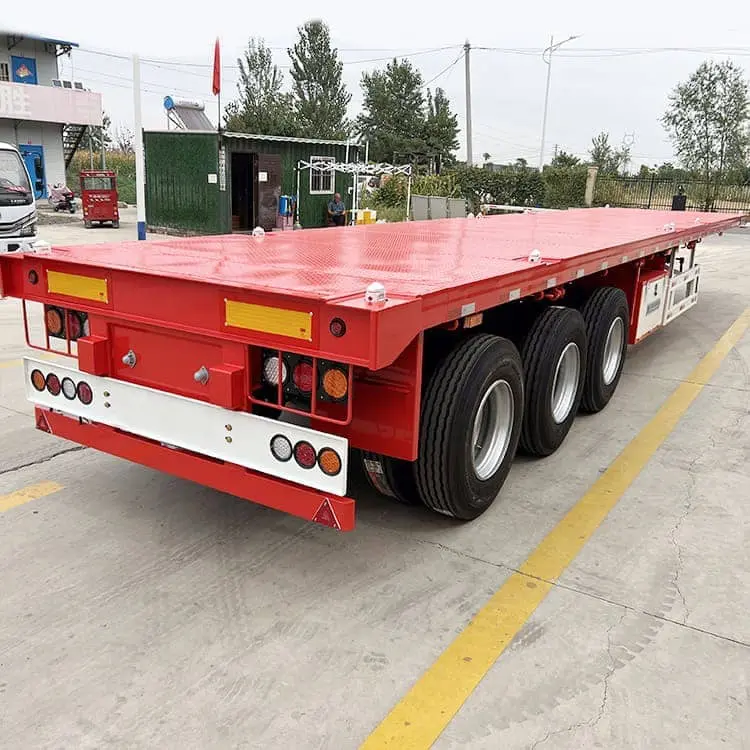

This 40 FT Flatbed Semi Trailer is suitable for transporting various goods, including containers, steel, and construction equipment. The frame is welded from high-strength steel, ensuring strong load-bearing capacity and resistance to deformation. The flatbed surface is smooth and non-slip, and it comes standard with sturdy locks. It is compatible with various tractor units, and its reasonable wheelbase allows for flexible steering. The powder-coated surface is corrosion-resistant, and the trailer is solidly built, durable, and fully equipped.

Send Inquiry

Product Description

✓ This 40 FT Flatbed Semi Trailer is specifically designed for heavy-duty freight. Its core frame is made of Q345+T700 high-strength manganese steel, integrally stamped and welded, providing excellent load-bearing capacity and easily handling heavy-duty transport scenarios such as containers, building materials, and construction machinery.

✓ The flatbed platform uses anti-slip patterned plates, coupled with container-specific securing locks, ensuring more secure cargo storage and safer transport. The entire vehicle adopts a standardized design, compatible with mainstream tractor units on the market, offering flexible steering and stable driving. Rust and corrosion resistant, it extends service life and adapts to various freight needs.

Technical Specifications

Name	40 FT Flatbed semi trailer
Dimension	1250025001550mm
Payload	40ton, 60ton, 80ton
Tire	11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles	13T/16T/20T Fuwa, BPW
King Pin	2 inch or 3.5 inch JOST Brand
Brake System	KEMI, WABCO with Four double Two single air chamber
Landing Gears	Standard 28 Ton, Fuwa, JOST
Suspension	Mechanical suspension, Air suspension
Floor	3mm, 4mm, 5mm diamond steel plate
Twist locks	4 / 8 / 12 sets
Functions	Transport container, loose cargo, bulk cargo, etc

Frequently Asked Questions

Q1: What materials are used in the construction of the trailer frame?

The frame is constructed using Q345+T700 high-strength manganese steel, which is integrally stamped and welded for superior load-bearing capacity and durability.

Q2: What are the available payload capacities for this 40 FT trailer?

This flatbed semi-trailer is available in multiple payload configurations, including 40-ton, 60-ton, and 80-ton options to suit different heavy-duty transport needs.

Q3: Is the trailer floor designed for safety during transport?

Yes, the platform features 3mm to 5mm diamond steel anti-slip patterned plates to prevent cargo movement and ensure safe operation.

Q4: What kind of braking system does the trailer use?

The trailer is equipped with high-quality KEMI or WABCO braking systems, featuring four double and two single air chambers for reliable stopping power.

Q5: Can this trailer handle different types of containers?

Absolutely. It comes with 4, 8, or 12 sets of twist locks, making it highly versatile for transporting standard containers, as well as loose or bulk cargo.

Q6: Is the trailer compatible with standard tractor units?

Yes, it features a standardized design with 2-inch or 3.5-inch JOST King Pins, ensuring compatibility with most mainstream tractor units available on the market.
