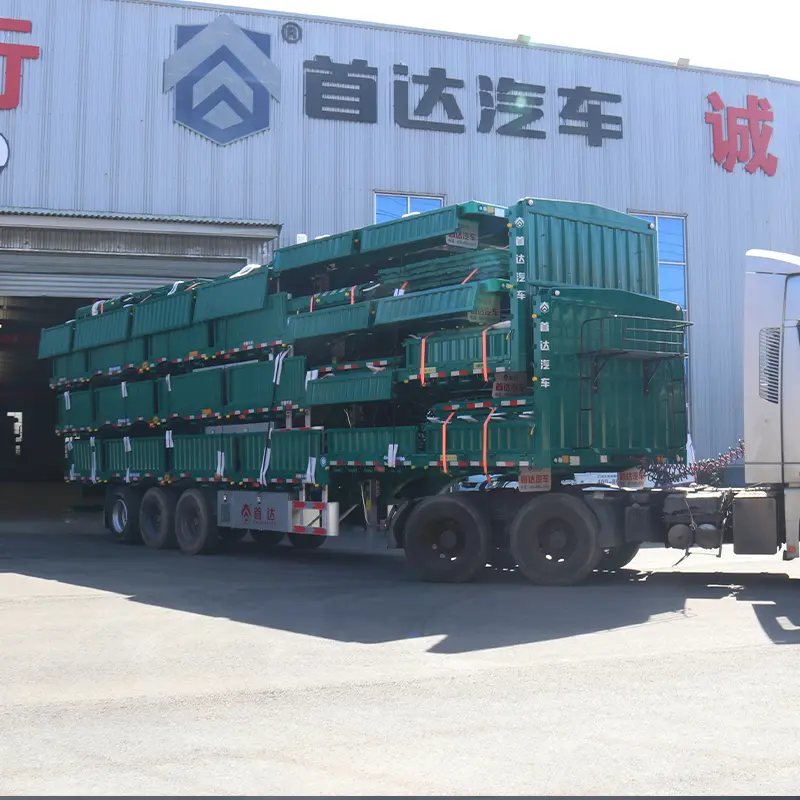

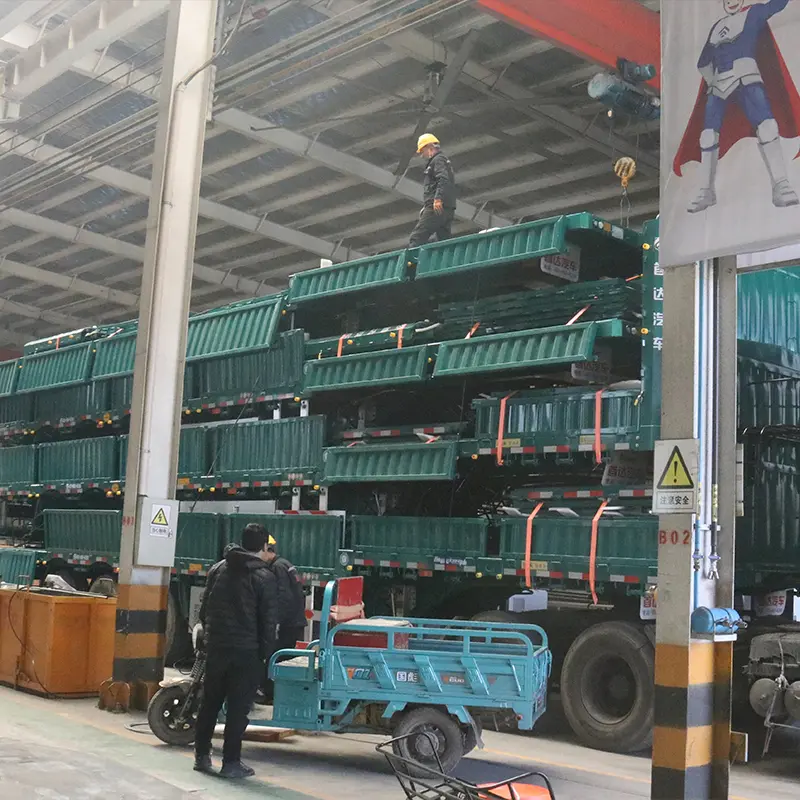

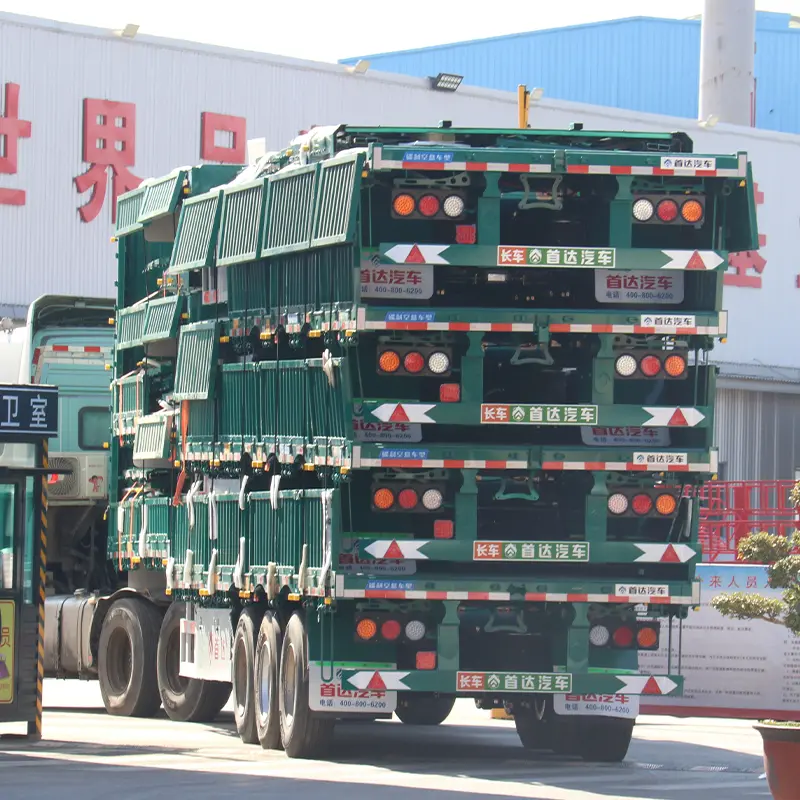

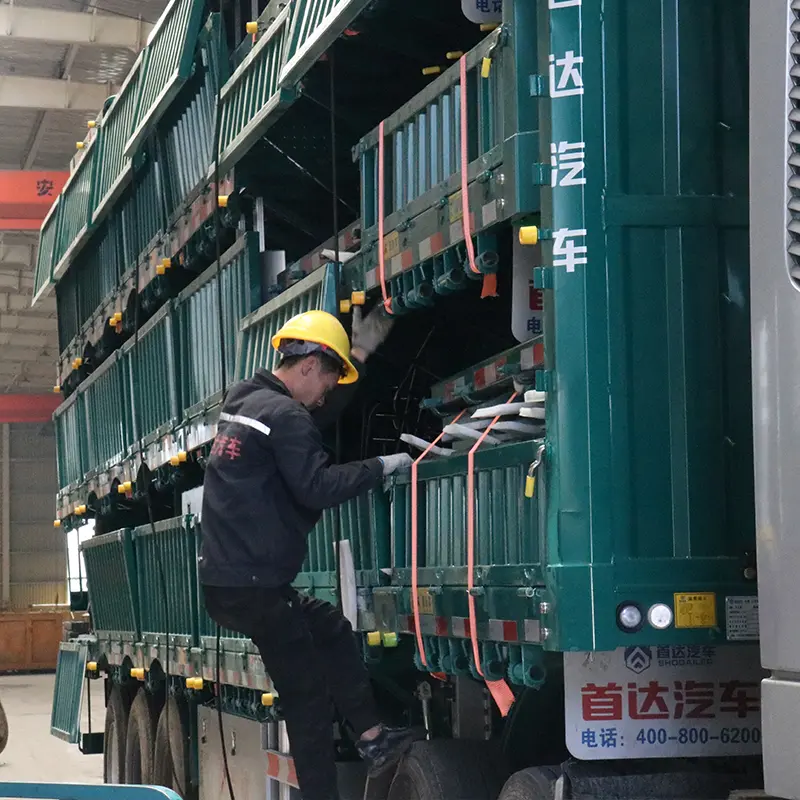

SHODAILER Fence Semi Trailer with Air Suspension Manufacturer, CKD
Product Description
Product Specifications
| Name | Fence type semi trailer |
| Dimension | 12500*2550*3200mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Functions | Transport common cargo, bulk cargo, grain and corn, livestock, cattle and sheep etc |
Main beam adopts high strength steel, stability and safety when operating in harsh road conditions. This makes the product long service time, save maintenance costs and improve operating efficiency.
The semi trailer has a fence structure design. Options include 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
Frequently Asked Questions
What types of cargo can the fence semi-trailer transport?
The fence semi-trailer is versatile and designed for transporting common cargo, bulk materials, grain, corn, and livestock such as cattle and sheep.
Can the dimensions of the trailer be customized?
Yes, while the standard dimension is 12500*2550*3200mm, we provide full customization options for dimensions, color, and side wall height to meet your specific needs.
What makes the main beam durable?
The main beam is constructed using high-strength steel, which provides superior stability and safety even when operating under harsh road conditions.
What axle and tire brands are available?
We use high-quality components including Fuwa or BPW axles (13T/16T/20T) and tires from reliable brands like Triangle, Double Coin, and Linglong.
What are the available payload capacities?
Depending on your requirements, you can choose from various payload capacities including 30, 40, 60, 80, or 100 tons.
What kind of braking system is installed?
The trailers are equipped with KEMI or WABCO braking systems featuring a configuration of four double and two single air chambers for maximum safety.
