High-Quality fence type semi trailer available now Factory, CKD
Product Description
Technical Specifications
| Name | Fence type semi trailer |
| Dimension | 12500*2550*3200mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Functions | Transport common cargo, bulk cargo, grain and corn, livestock, cattle and sheep etc |
Product Details & Features

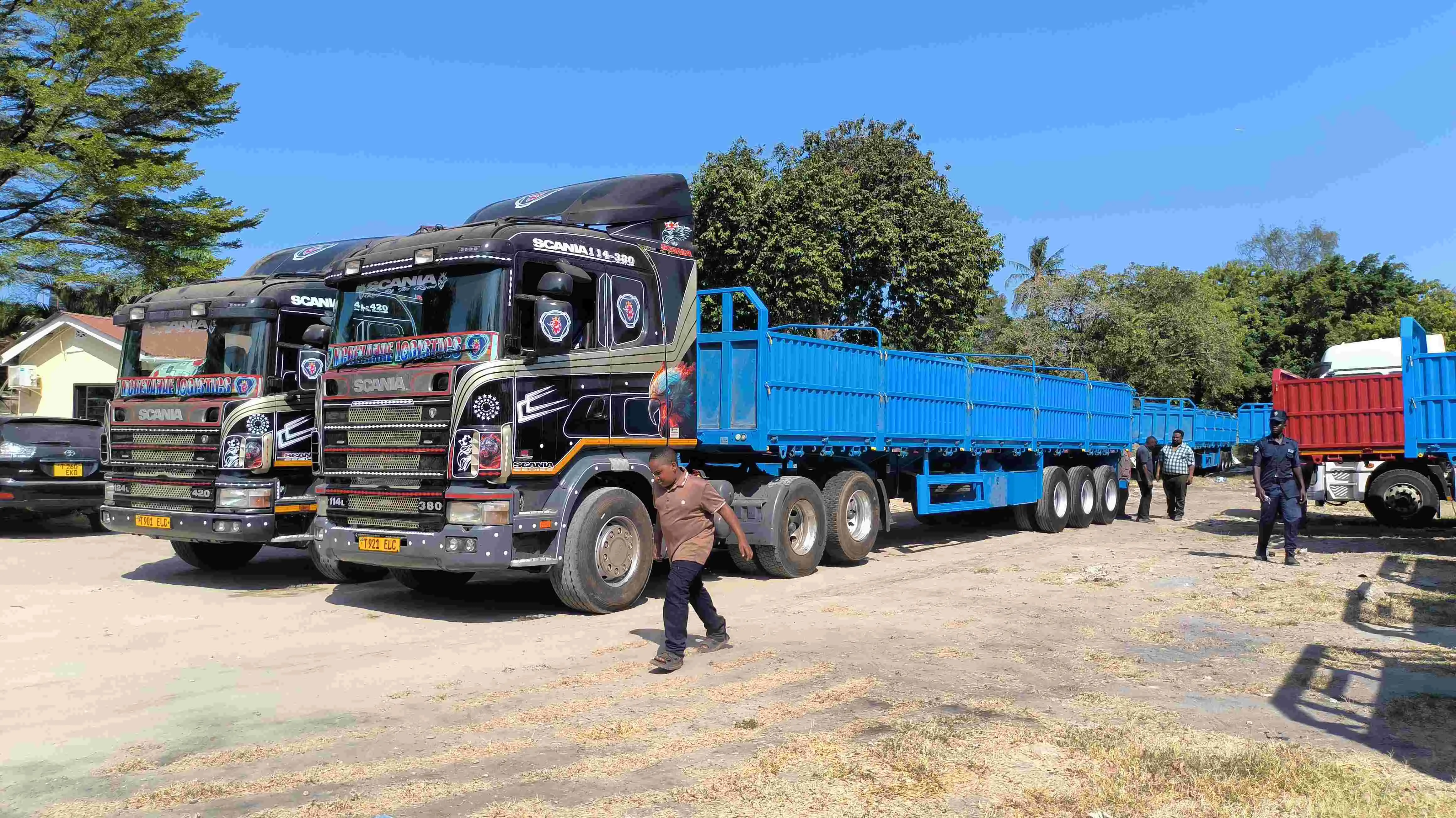

The 3 axle 60 ton fence cargo semi trailer features a specialized fence structure design optimized for versatile logistics. The upper fence and the lower fence both have a height of 800mm, with a 200mm middle section for structural integrity.
Multiple configurations are available to meet diverse transport needs, including 2, 3, or 4 axles fence cargo trailers with load capacities ranging from 30, 40, 60, 80 to 100 tons.
Frequently Asked Questions
What are the main applications of a fence semi trailer?
It is primarily used for transporting common cargo, bulk materials, grains, corn, and livestock such as cattle and sheep.
What payload capacities are available for these trailers?
We offer various models with load capacities of 40 tons, 60 tons, and up to 80 or 100 tons depending on the axle configuration.
Can the fence height be customized?
Yes, while the standard design includes 800mm sections, the dimensions can be customized to meet specific transport requirements.
What types of suspension systems are used?
The trailers can be equipped with either mechanical suspension or air suspension based on the road conditions and cargo type.
Which brands of braking systems are installed?
The trailers typically utilize high-quality KEMI or WABCO systems featuring four double and two single air chambers for maximum safety.
What kind of flooring is used in the trailer?
The floor is constructed from durable diamond steel plate, with thickness options of 3mm, 4mm, or 5mm for anti-slip performance.
