SHODAILER Flatbed Semi-Trailer, Optional Rear-Tip or Side-Tip Function, Quick Unloading, Improving Transportation Efficiency-1 Suppliers, Factories
Product Description
Specifications & Details

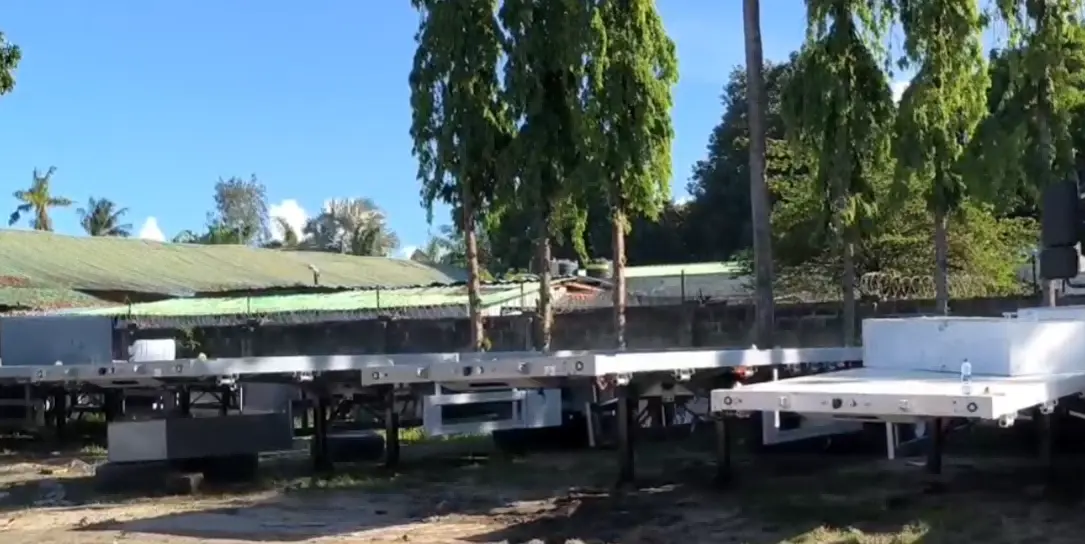

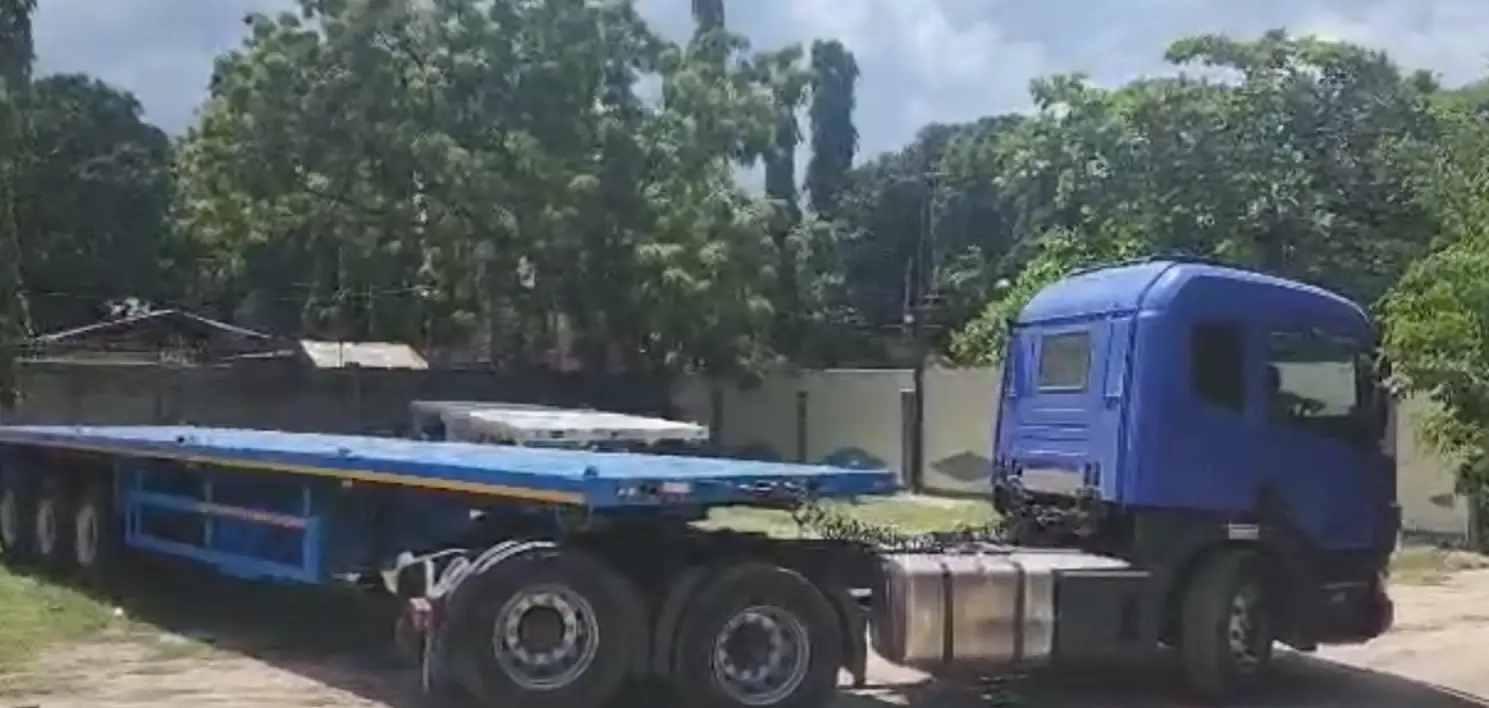

| Name | 40 FT Flatbed semi trailer |
| Dimension | 12500*2500*1550mm |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Twist locks | 4 / 8 / 12 sets |
| Functions | Transport container, loose cargo, bulk cargo, etc |
As a professional manufacturer, we have provided many tri axle trailers for many countries. We have many more advantages on the prices and quality control.
This 40ft flatbed trailer adopts the low carbon high strength alloy steel T700 to make the main beam, it has a higher carry capacity and service life of more than 10 years. And the tilted support covered one by one, share the stress of main beam. The distance only less than 500 mm.
The tri axle 40 ft flatbed container carrier trailer has a relatively wide wheelbase due to the extended rear axle, and its relative driving and steering stability is better than that of ordinary double tires.
Frequently Asked Questions
Q1: What is the load capacity of the 40ft flatbed trailer?
The trailer is available in multiple payload configurations, including 40 ton, 60 ton, and 80 ton options to suit different transport needs.
Q2: What material is used for the main beam construction?
We use T700 low carbon high strength alloy steel for the main beam, ensuring a service life of over 10 years and superior carrying capacity.
Q3: Can this trailer transport standard shipping containers?
Yes, it is specifically designed for container transport and comes equipped with 4, 8, or 12 sets of twist locks to secure various container sizes.
Q4: What are the benefits of the tri-axle configuration?
The tri-axle design with an extended rear axle provides a wider wheelbase, which significantly improves driving and steering stability compared to standard double-tire trailers.
Q5: What kind of suspension and braking systems are available?
The trailer features high-quality KEMI or WABCO braking systems with air chambers, and customers can choose between mechanical or air suspension systems.
Q6: What type of flooring does the trailer have?
The trailer floor is constructed using durable diamond steel plates, available in thicknesses of 3mm, 4mm, or 5mm for maximum slip resistance and durability.
