China High-Strength Steel Logistics Transport Trailer Factories, CKD

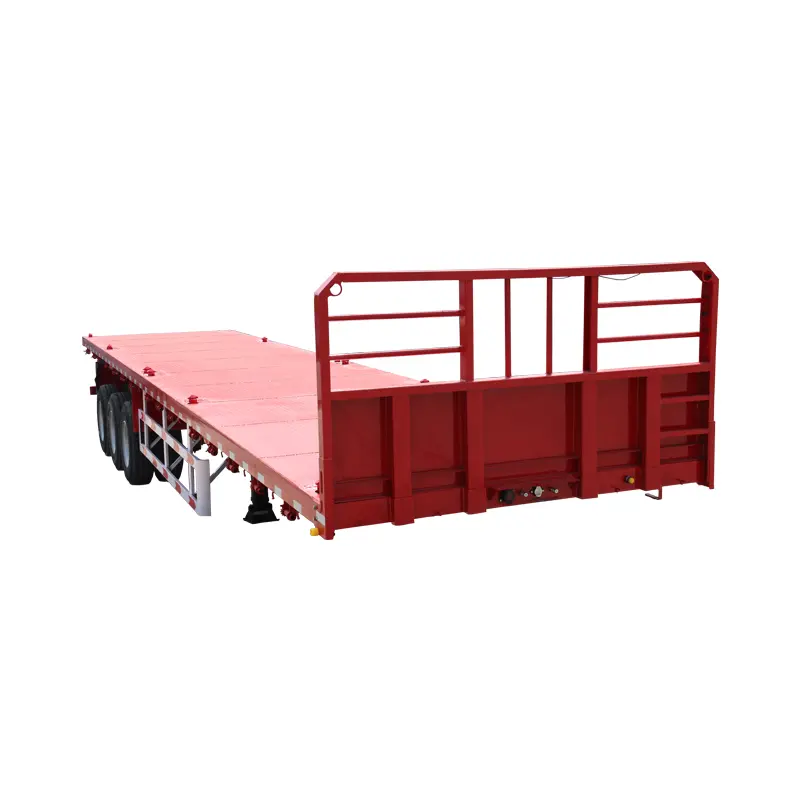

This flatbed semi trailer is suitable for various cargo transportation scenarios, featuring robust construction and strong load-bearing capacity. Made of high-strength steel, it offers stable performance during transit and can accommodate different types of containers and bulk cargo. It meets road transport requirements and is ideal for long-haul logistics and engineering projects.

Product Description

This flatbed semi trailer features a proven structural design, delivering high overall strength and durability for stable operation across diverse road conditions. Its frame layout is optimized for excellent torsion resistance, making it suitable for transporting containers, steel, plates, and other heavy cargo. The trailer is equipped with reliable suspension and braking systems to ensure driving safety and handling stability.

The body undergoes rigorous rust removal and anti-corrosion treatment, effectively extending its service life. Standard-equipped lighting, reflective markings, and protective devices ensure compliance with relevant transport safety regulations. Designed for practicality and cost-effectiveness, it is easy to maintain and ideal for logistics companies, transport firms, and engineering sectors, serving as a stable, versatile, and general-purpose freight trailer.

Technical Specifications

Name Flatbed semi trailer
Dimension 12500*2500*1550mm
Payload 50ton
Tire 13*12R22.5 Linglong
Axles 3*13T Original FUWA with ABS
King Pin 50 bolted
Brake System WABCO dual line Pneumatic Brake System, with 6 Braking Air Chamber
Landing Gears FUWA 28T
Suspension Mechanical suspension, Air suspension
Floor Diamond 3mm high strength steel
Side Wall Reinforced 160 High strength steel
Main Material Q345+T700 high strength steel

Frequently Asked Questions

What is the maximum payload of this flatbed trailer?
The flatbed semi trailer is designed with a high-strength structural layout capable of carrying a payload of up to 50 tons.
What materials are used in the construction of the trailer frame?
The main frame is constructed using a combination of Q345 and T700 high-strength steel, providing excellent torsion resistance and durability.
What kind of braking system does the trailer use?
It features a professional WABCO dual-line pneumatic brake system equipped with six braking air chambers for maximum safety and stability.
Is the trailer protected against rust and corrosion?
Yes, the trailer body undergoes rigorous rust removal and anti-corrosion treatments to significantly extend its service life in various environments.
What axle and tire configurations are provided?
The trailer comes equipped with 3*13T Original FUWA axles with ABS and 13*12R22.5 Linglong tires for reliable heavy-duty performance.
Can this trailer be used for container transport?
Absolutely. The optimized frame layout and flatbed design make it ideal for transporting containers, steel plates, and other general heavy cargo.
