SHODAILER In-Stock 40 FT Flatbed Semi-Trailer Manufacturers, CKD

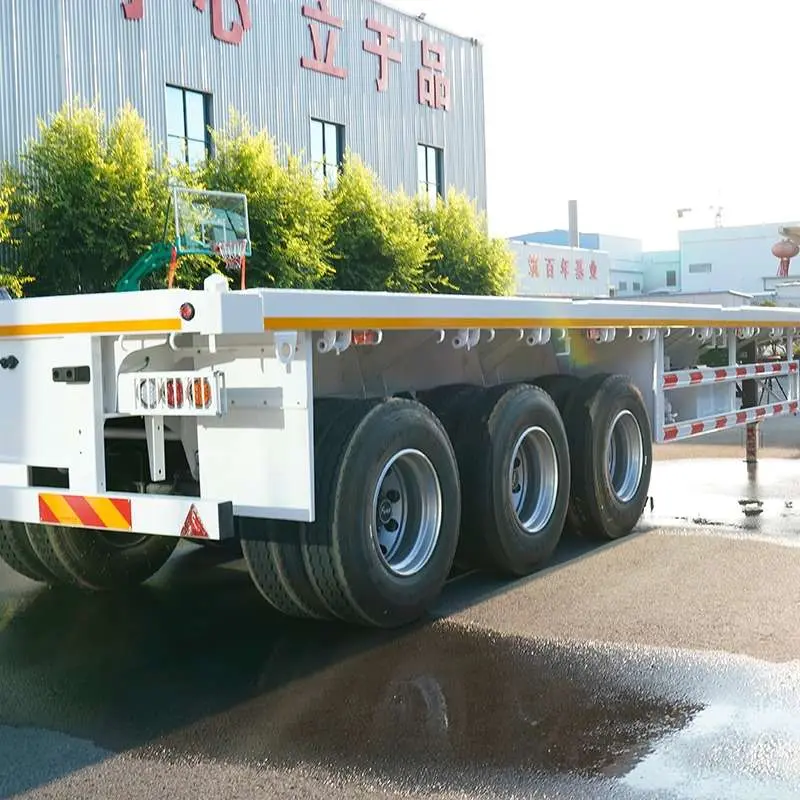

SHODAILER 40ft flatbed trailer adopts the low carbon high strength alloy steel T700 to make the main beam, it has a higher carry capacity and service life of more than 10 years. And the tilted support covered one by one, share the stress of main beam. The distance only less than 500 mm.

Triaxle flat bed trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1Ã—40ft or 2Ã—20ft container.

Send Inquiry

Product Description

Product Specifications

Name	40 FT Flatbed semi trailer
Dimension	1250025001550mm
Payload	40ton, 60ton, 80ton
Tire	11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles	13T/16T/20T Fuwa, BPW
King Pin	2 inch or 3.5 inch JOST Brand
Brake System	KEMI, WABCO with Four double Two single air chamber
Landing Gears	Standard 28 Ton, Fuwa, JOST
Suspension	Mechanical suspension, Air suspension
Floor	3mm, 4mm, 5mm diamond steel plate
Twist locks	4 / 8 / 12 sets
Functions	Transport container, loose cargo, bulk cargo, etc

🏗️ Structure & Design

The function of a tri axle trailer for sale is made possible through its structure’s design and manufacture. Basically, it is a transport equipment mainly of a steel construction defining its frame.

⚙️ Integrated Systems

It comprises a lighting system, brakes and tires. It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another.

Use platform trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them. The size of the container trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container. Flatbed bogie trailers are special trailers for transporting containers.

As a professional manufacturer, many tri axle trailers have been provided for many countries. We have many more advantages on the prices and quality control.

Frequently Asked Questions

What are the primary functions of a flatbed semi trailer?

Flatbed semi trailers are primarily used for transporting containers (20ft or 40ft), loose cargo, and bulk materials efficiently between ports, warehouses, and shipping centers.

What is the maximum payload capacity available?

Depending on the configuration, the payload capacity ranges from 40 tons to 80 tons to meet various heavy-duty transportation requirements.

How are containers secured to the flatbed?

The trailer is equipped with specialized twist lock devices (available in sets of 4, 8, or 12) positioned to match standard container corner castings for secure transport.

What types of suspension can be chosen?

Customers can choose between heavy-duty mechanical leaf spring suspension for durability or air suspension for a smoother ride and better cargo protection.

Is the trailer floor durable enough for heavy machinery?

Yes, the floor is constructed with 3mm, 4mm, or 5mm diamond steel plate, providing a high-strength, anti-skid surface suitable for various types of cargo.
