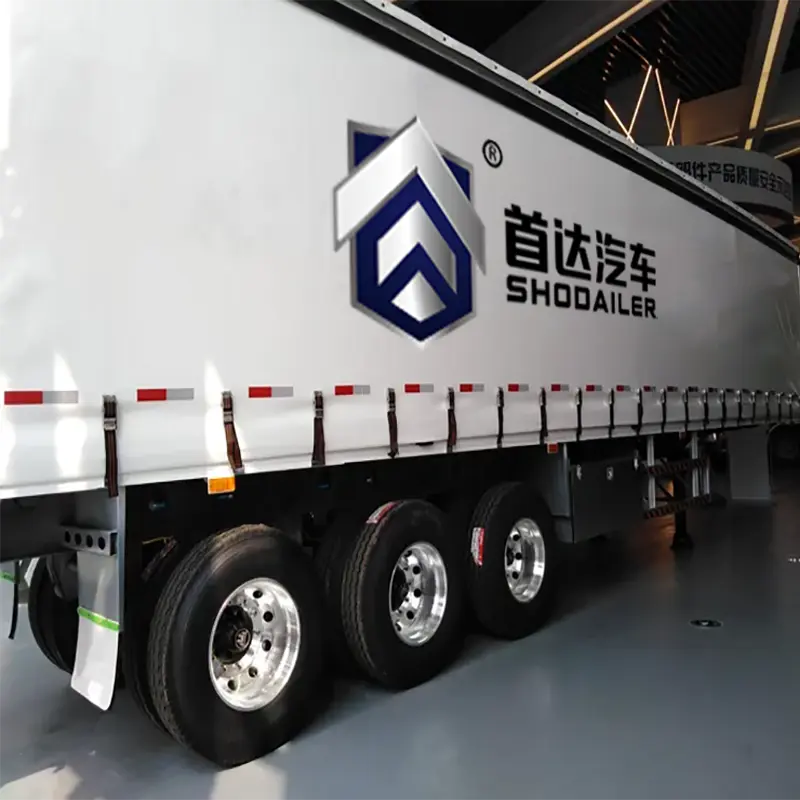

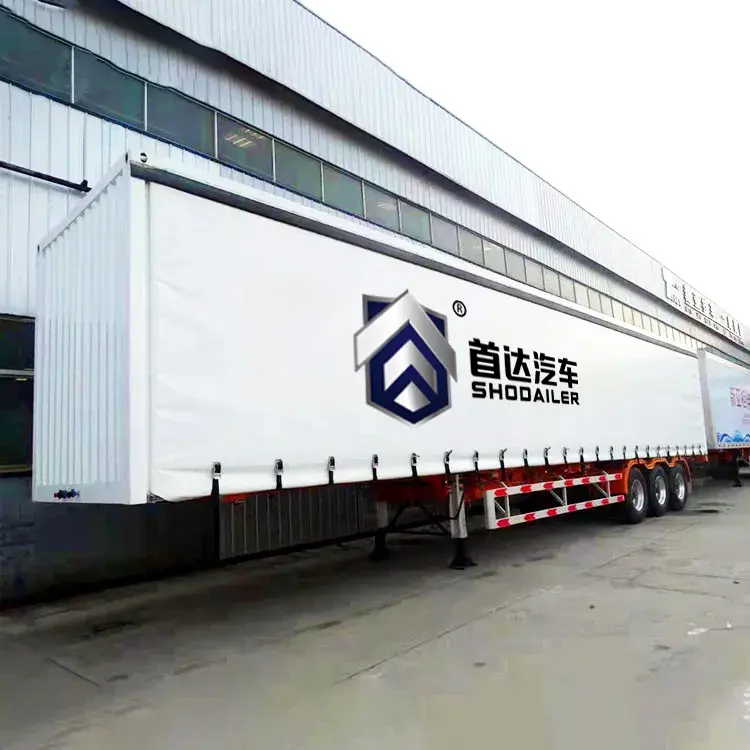

China Highly durable side curtain semi trailer Factory, SKD
Product Description
Basic Parameters
| Size | 13750x2500x4000mm |
| Tare weight | around 730kg |
| Payload | 40000kg |
| Material | Q355 + High strength steel T700 |
| Front overhang | 1300mm |
| Rear overhang | 2990mm |
| Wheel base | 6390+1310+1310mm |
Specification of Curtainsider Trailer
| Model Number | LC9400 |
| Function | Transport 8-10 cars |
| Overall Dimension(mm) | 13750-25000mm * 2600-3000mm * 4000mm |
| Tare Weight(KG) | 7350kg |
| Loading Weight(KG) | 40000kg |
| Total Weight(KG) | 47350kg |
| Wheelbase(mm) | 7450+1310+1310 |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm * 13(Thick)mm * 10 Layer |
| Material of Main beam | Q345B carbon steel, Height: 500mm, Upper: 14mm, Down: 16mm, Middle: 8mm |
| Side beam | Q235260 I-beams |
| Platform plate | Net cargo platform |
| Skip work | Take a pull and skip work |
The curtain side trailer combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security.
Frequently Asked Questions
Q1: How many cars can this curtainsider trailer transport?
The LC9400 model is specifically designed to transport between 8 to 10 cars efficiently.
Q2: What are the main benefits of a curtain side design?
It offers the easy loading access of a flatbed with the security and weather protection of an enclosed van. The PVC-coated curtains can be retracted from either end.
Q3: What materials are used for the main beam?
The main beam is constructed from high-quality Q345B carbon steel, with a height of 500mm and plate thicknesses optimized for durability (14mm upper, 16mm down).
Q4: Is the trailer suitable for heavy-duty loading?
Yes, the trailer has a payload capacity of 40,000kg and uses high-strength T700 steel combined with Q355 material for maximum structural integrity.
Q5: What type of suspension system does it use?
It utilizes a robust Mechanical Leaf Spring Suspension system with 10 layers of 90mm wide by 13mm thick leaf springs.
Q6: Are the side curtains weatherproof?
Yes, the side curtains are made of durable PVC-coated vinyl, providing excellent weatherproof protection for the cargo.
