China Tri Axle Side Curtain Trailer Suppliers, CKD
Product Description
Product Specifications
| Trailer Model | 3-axle sedan transport trailer |
| Model Number | LC9400 |
| Function | Transport 8-10 cars |
| Overall Dimension(Lx Wx H) | 13750-25000mm * 2600-3000mm * 4000mm |
| Tare Weight | 7350kg |
| Loading Weight | 40000kg |
| Total Weight | 47350kg |
| Axle Brand | 3 * 13TON Axle FUWA Brand |
| Wheelbase | 7450+1310+1310mm |
| Suspension System | Mechanical Leaf Spring Suspension |
| Leaf Spring | 90(W)mm * 13(Thick)mm * 10 Layer |
| Main Beam Material | Q345B carbon steel (Height: 500mm, Upper: 14mm, Down: 16mm, Middle: 8mm) |
| Side Beam | Q235260 l-beams |
| Platform Plate | Net cargo platform |
| Skip Work | Take a pull and skip work |
Product Overview

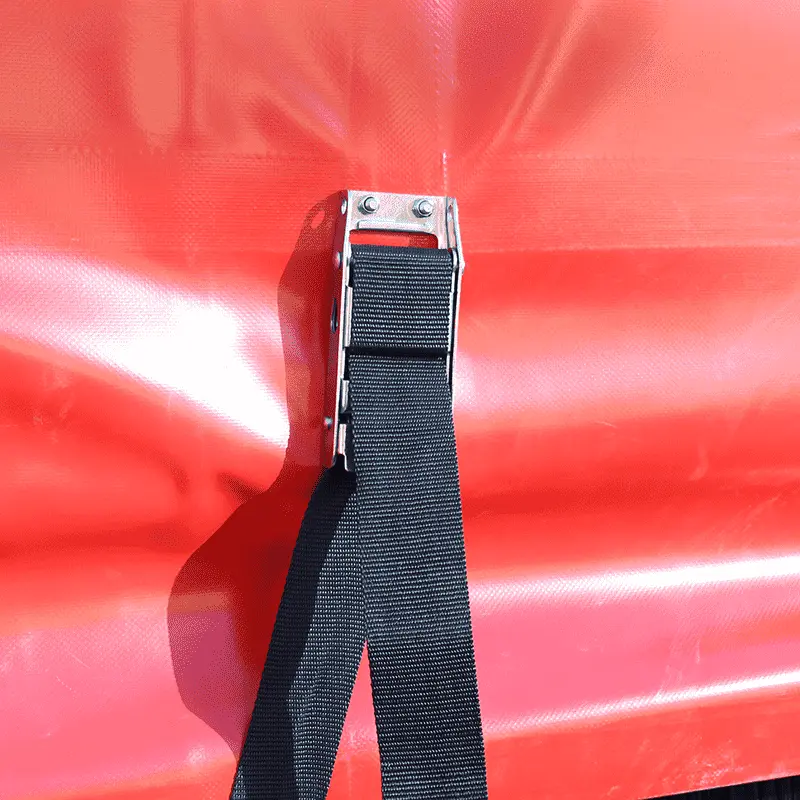

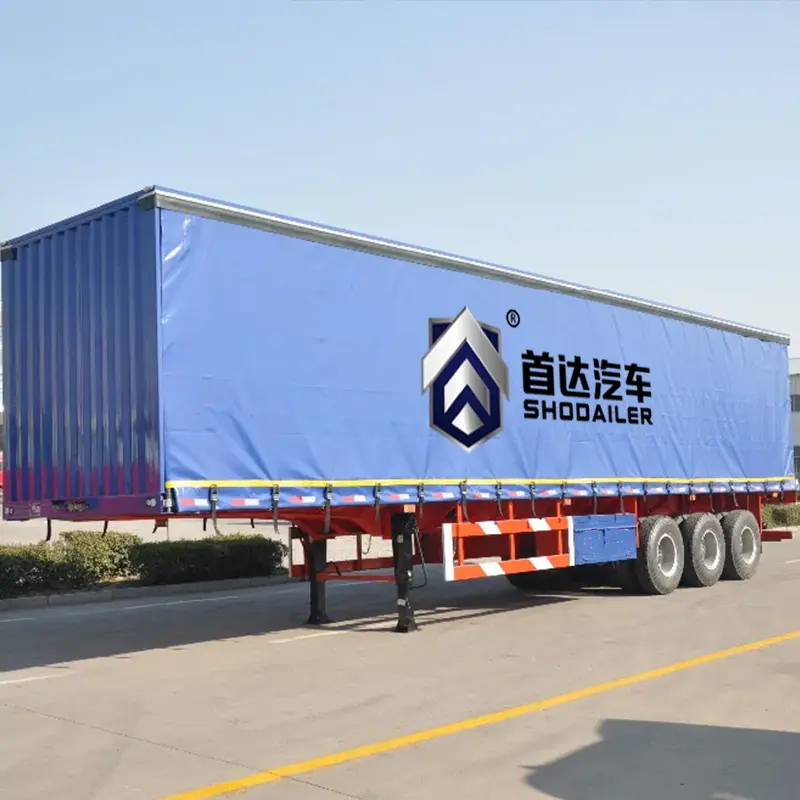

Curtain side trailer combines the advantages of a flatbed with the covering and containment benefits of an enclosed trailer. Consisting of durable yet flexible PVC-coated vinyl side curtains which can be retracted from either the front or rear of the trailer, and van-style swinging rear doors, a curtain side totally encloses the load for weatherproof protection and security.
Frequently Asked Questions
How many vehicles can this sedan transport trailer carry?
The 3-axle sedan transport trailer is specifically designed to carry between 8 to 10 cars, depending on the vehicle sizes and the trailer's length adjustment.
What brand of axles are used in the LC9400 model?
We use high-quality 13TON axles from the FUWA brand, ensuring durability and heavy-duty performance for long-distance transport.
What are the advantages of the curtain side design?
A curtain side trailer provides the ease of side-loading like a flatbed while offering the weatherproof protection and security of an enclosed van. The flexible PVC-coated vinyl curtains allow for quick access from both front and rear.
What material is used for the main beam?
The main beam is constructed from Q345B carbon steel with a height of 500mm, featuring reinforced upper (14mm), down (16mm), and middle (8mm) plates for maximum structural integrity.
What is the loading capacity of this trailer?
The trailer has a tare weight of 7350kg and a substantial loading weight capacity of 40,000kg, bringing the total gross weight to 47,350kg.
What type of suspension system does it use?
It utilizes a heavy-duty mechanical leaf spring suspension system with 10 layers of 90mm wide by 13mm thick springs to handle rigorous road conditions.
