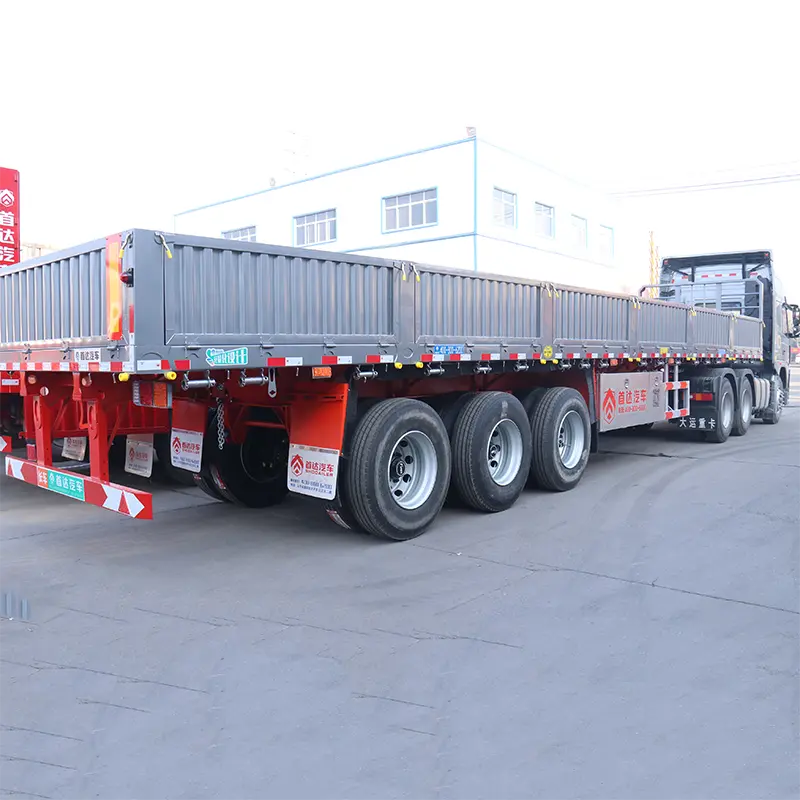

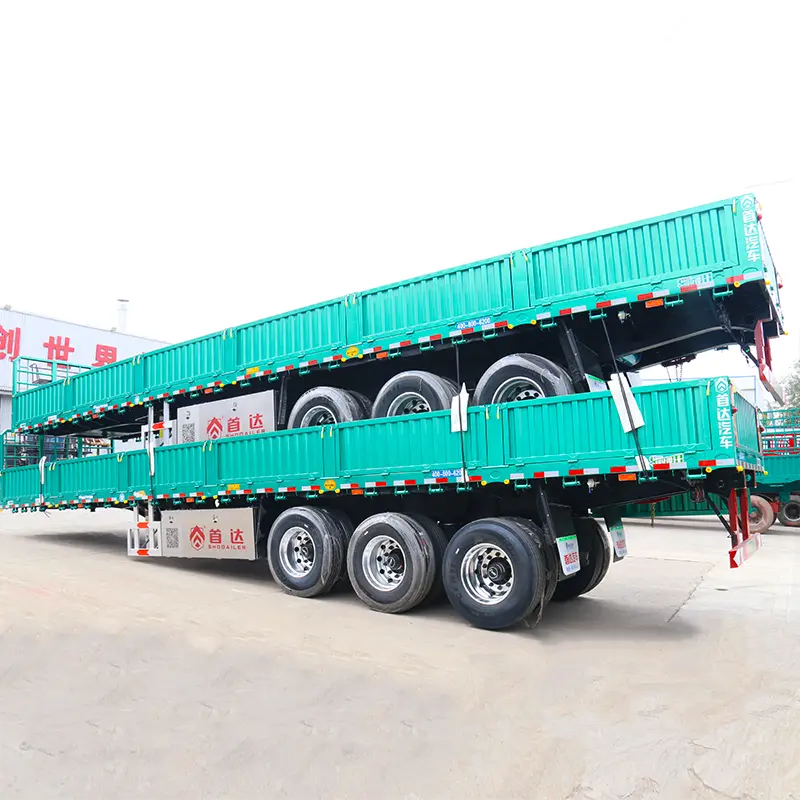

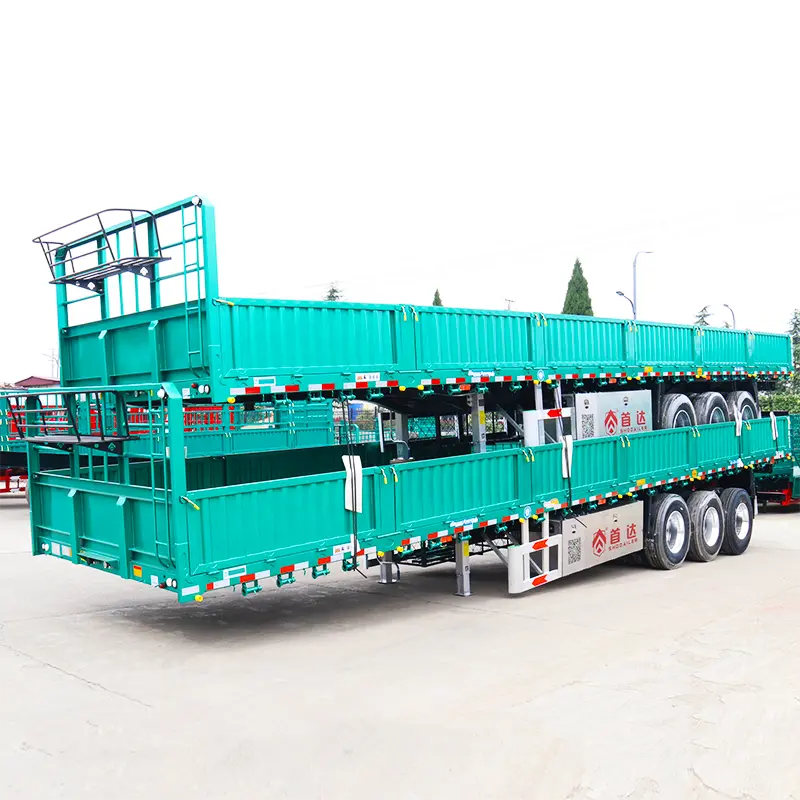

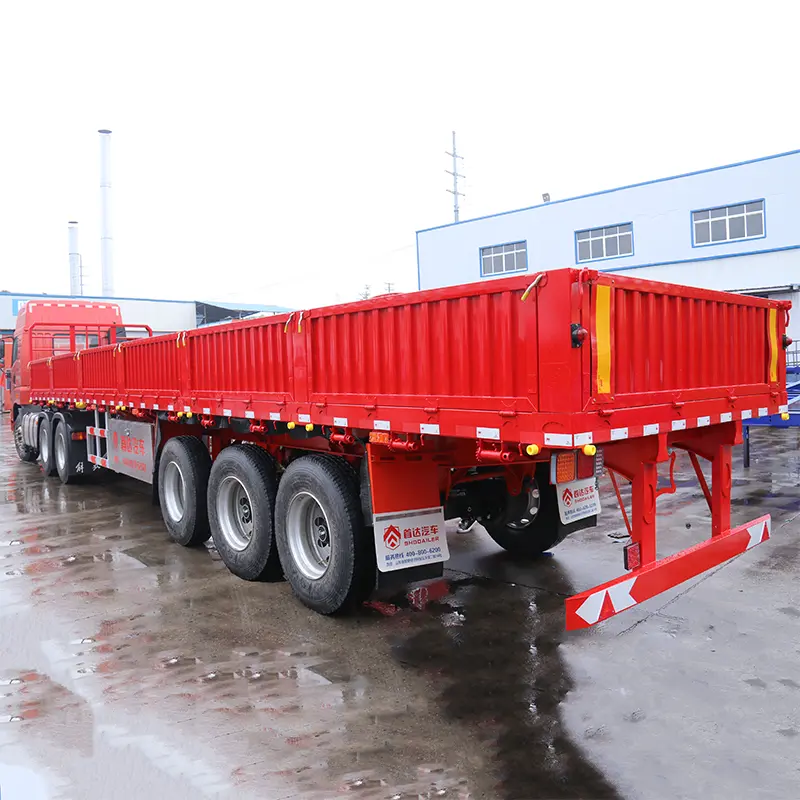

China 3 Axle High Strength Steel Side Wall Semi Trailer Suppliers, SKD

Drop side doors trailer can enhance safety by providing a secure containment system for the cargo, reducing the risk of shifting or falling during transit.

it is easier to load and unload goods from multiple angles, allowing for greater flexibility in handling different types of cargo

Send Inquiry

Product Description

Name	Side wall cargo semi trailer
Dimension	1250025502700mm (customized)
Payload	40ton, 60ton, 80ton
Tire	11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles	13T/16T/20T Fuwa, BPW
King Pin	2 inch or 3.5 inch JOST Brand
Brake System	KEMI, WABCO with Four double Two single air chamber
Landing Gears	Standard 28 Ton, Fuwa, JOST
Suspension	Mechanical suspension, Air suspension
Floor	3mm, 4mm, 5mm diamond steel plate
Side Wall	High strength T980, Height can be 60mm/80mm/100mm or customized
Functions	Transport common cargo, loose cargo, bulk cargo, grain and corn etc

The sidewall cargo semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side 3 axle cargo trailer can be added with a container turn lock to transport the container.

✔ Advantage

High Strength Light Weight 1-2% more payload

Can be utilized for multiple applications

High strength steel, 2 coat paint Longer Life

Best in class axle and braking system

More payload gives more revenue capacity

Optional ABS for additional safety

⚙ Main Components of Sidewall Semi Trailer

1. Frame: The main load-bearing part, composed of main beams, side beams, cross beams, and tilted supports.

2. High Side Board: Available in flat plate or vertical corrugated board; can be detachable or fixed.

3. Protection Device: Protects pedestrians and reduces wind resistance to save fuel.

4. Traction King Pin: Connects the trailer to the tractor to withstand traction forces.

5. Support Leg: Dual support legs used for reliable parking when the trailer is detached.

6. Axles and Tires: Three-axle assemblies installed under the suspension system for load support.

7. Suspension System: Leaf spring suspension used to support loads and absorb vibrations.

8. Brake Device: Dual-line pneumatic system equipped with an anti-lock braking system (ABS).

9. Electrical System: International standard system fully compatible with tractor units.

10. Attachments: Includes tool boxes, spare tire frames, stakes, and rope hooks.

Frequently Asked Questions

Q1: What materials can the sidewall semi trailer transport? It is designed to transport a wide variety of goods including sand, bags, poultry, grain, corn, and other bulk or loose cargo.

Q2: Can I transport shipping containers with this trailer? Yes, the high side 3-axle cargo trailer can be equipped with container turn locks to safely transport containers.

Q3: Is the height of the sidewall customizable? Yes, the sidewall height can be customized to 60mm, 80mm, 100mm, or other specific heights according to your requirements.

Q4: What type of braking system is used? The trailer uses a dual-line pneumatic braking system, often featuring WABCO or KEMI components, and includes an ABS (Anti-lock Braking System).

Q5: What are the main advantages of the frame design? The frame uses high-strength steel which provides a light weight (increasing payload by 1-2%) while ensuring a longer service life with a two-coat paint finish.

Q6: What suspension options are available? You can choose between heavy-duty mechanical leaf spring suspension or air suspension depending on your road conditions and cargo needs.
