Product Description
Product Specifications
| Name | Side wall cargo semi trailer |
| Dimension | 12500*2550*2700mm (customized) |
| Payload | 40ton, 60ton, 80ton |

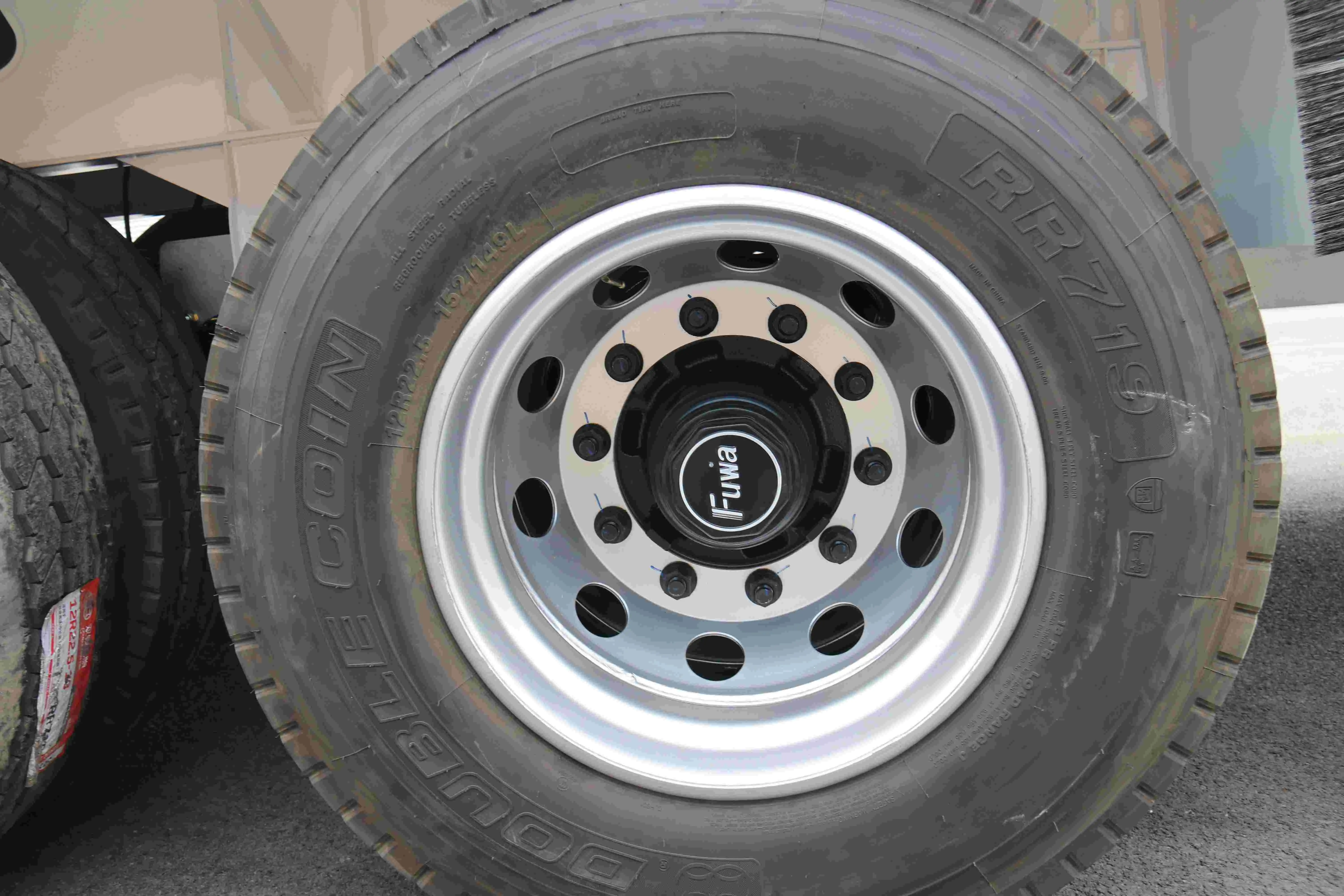

| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Side Wall | High strength T980, Height can be 60mm/80mm/100mm or customized |
| Functions | Transport common cargo, loose cargo, bulk cargo, grain and corn etc |
Key Components

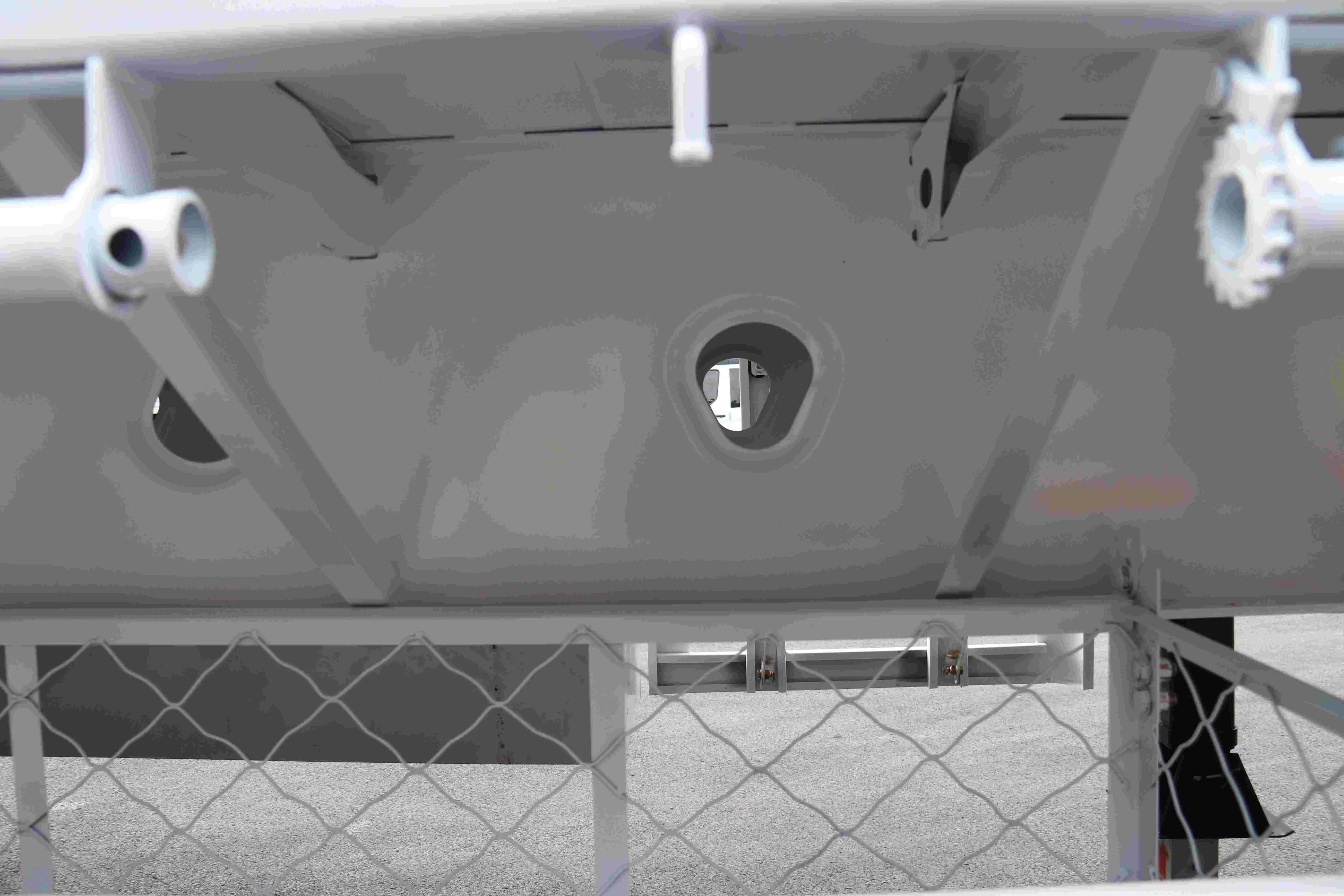

Sidewall semi trailer frame
The frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports.
High side board
The side wall is divided into a flat plate and a vertical corrugated board. Can be detached or welded to death.

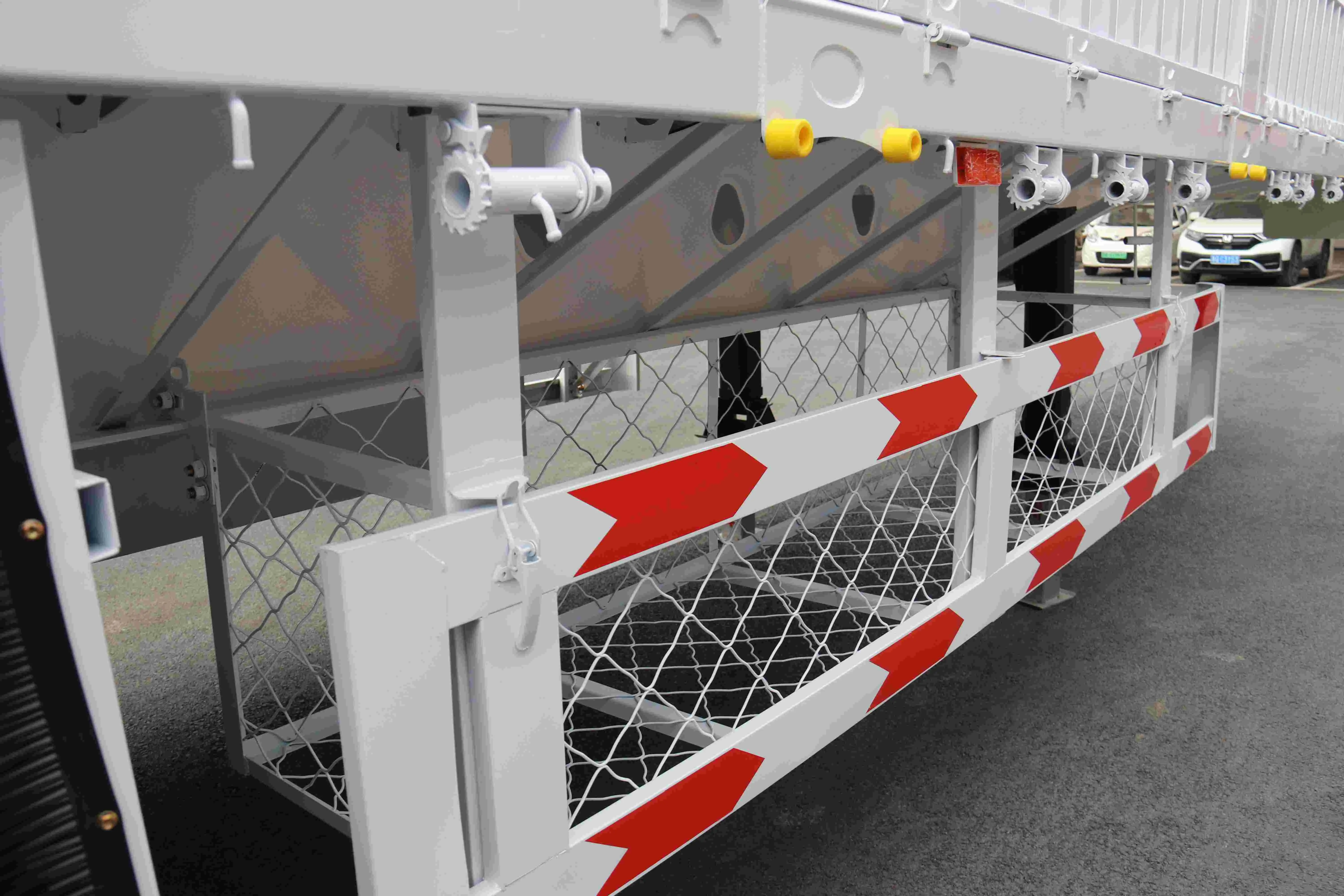

Protection device
Dry goods carrier trailer protection protects pedestrians and other general cargo trailers from getting under the sidewall semi-trailer. It can also reduce wind resistance and save fuel.
Traction king pin
The traction pin is an important component that connects the high side trailer to the tractor and withstands traction, and is connected to the traction seat.
Frequently Asked Questions
What is the maximum payload capacity?
Our side wall cargo semi trailers are designed for heavy-duty transport with payload options of 40 tons, 60 tons, and up to 80 tons depending on the configuration.
Can the side wall height be customized?
Yes, the side wall height is typically available in 600mm, 800mm, or 1000mm, but it can be fully customized to meet your specific cargo requirements.
What types of cargo can this trailer transport?
It is ideal for transporting a variety of goods, including common cargo, loose materials, bulk cargo, grain, corn, and other agricultural products.
Which brands of components are used in the trailer?
We use industry-leading brands such as JOST for king pins and landing gears, and FUWA or BPW for axles to ensure long-term durability.
What braking system is installed?
The trailers are equipped with high-performance KEMI or WABCO braking systems, featuring four double and two single air chambers for maximum safety.
Are different suspension systems available?
Yes, we provide both mechanical leaf spring suspension and air suspension systems based on your road conditions and cargo sensitivity.
