SHODAILER Side Wall Semi trailers in Tanzania warehouse Manufacturer, Factories
Product Description
Product Specifications

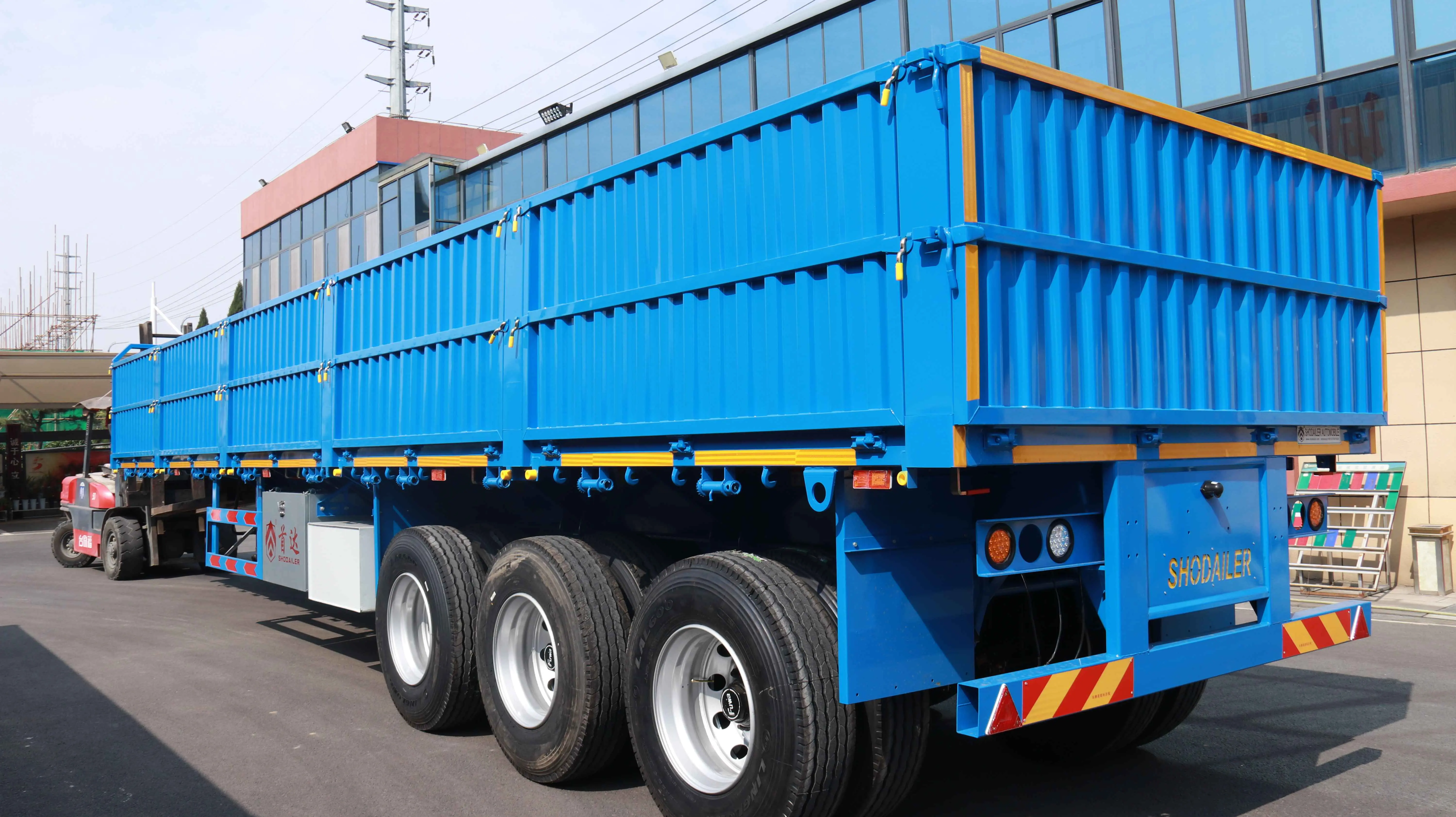

| Name | Side wall cargo semi trailer |
| Dimension | 12500*2550*2700mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Side Wall | High strength T980, Height can be 60mm/80mm/100mm or customized |
| Functions | Transport common cargo, loose cargo, bulk cargo, grain and corn etc |
Key Features & Components
Sidewall Semi Trailer Frame
The frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports, ensuring structural integrity under heavy loads.
High Side Board
The side wall is divided into a flat plate and a vertical corrugated board. These can be detached or welded permanently according to your specific transport requirements.
Protection Device
Dry goods carrier trailer protection devices protect pedestrians and other vehicles from getting under the sidewall semi-trailer. It also reduces wind resistance and improves fuel efficiency.
Traction King Pin
The traction pin is an important component that connects the high side trailer to the tractor, withstands traction forces, and is securely connected to the traction seat.
Frequently Asked Questions
What types of cargo can be transported with a side wall semi trailer?
It is designed to transport common cargo, loose cargo, bulk items, grain, corn, and other dry goods that require containment.
Can the height of the side walls be customized?
Yes, the side wall height is typically available in 60mm, 80mm, or 100mm, but it can be fully customized based on your needs.
What is the maximum payload capacity?
We offer different models with payload capacities ranging from 40 tons to 80 tons.
What suspension systems are available?
You can choose between a standard mechanical suspension for durability or an air suspension for a smoother ride and better cargo protection.
Are the side walls removable?
The side walls can be designed as either detachable units for versatility or welded permanently for maximum strength.
What kind of flooring is used in the trailer?
The trailer features a high-durability diamond steel plate floor, available in 3mm, 4mm, or 5mm thickness.
