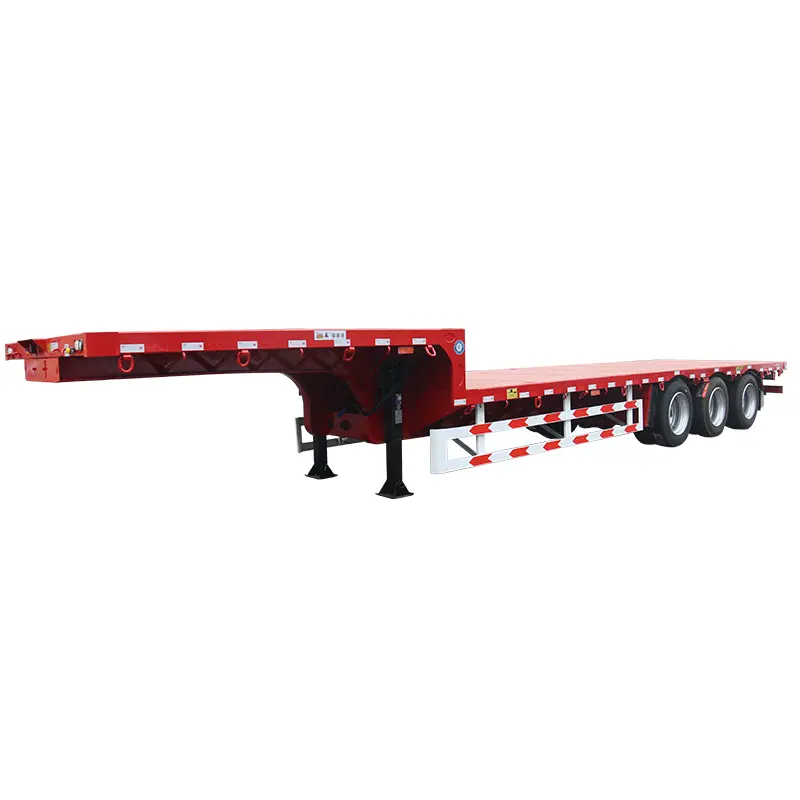

China 60 Ton Low Bed Semi Trailer Factory, SKD
Product Description
Technical Specifications
| Name | Low bed semi trailer |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Functions | Transport common goods, heavy equipment like excavator etc |
| Dimension | 13750*3000*1600mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
Product Overview
Low plate semi-trailer series products are suitable for a variety of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment and all kinds of transportation, offering a wide range of uses that are efficient and fast. The vehicle adopts advanced computer-aided design software to optimize a flexible and diverse design, according to requirements to design the frame bearing surface to meet the transportation of various special goods.
The vehicle parts of the low plate semi-trailer have no fence plate and are widely used, mainly for medium and long-distance cargo transportation.
Frequently Asked Questions
Q: What equipment can be transported using this low bed semi trailer?
A: It is designed to transport a variety of mechanical equipment, large objects, highway construction machinery (like excavators), large tanks, and power plant equipment.
Q: What are the available payload capacities?
A: We offer standard payload options of 40 tons, 60 tons, and 80 tons to suit different heavy-duty transportation needs.
Q: Can the dimensions of the trailer be customized?
A: Yes, while the standard dimension is 13750*3000*1600mm, we utilize computer-aided design to customize the frame bearing surface based on specific cargo requirements.
Q: What type of braking system is used?
A: The trailers are equipped with high-performance KEMI or WABCO braking systems, featuring four double and two single air chambers for enhanced safety.
Q: What materials are used for the trailer floor?

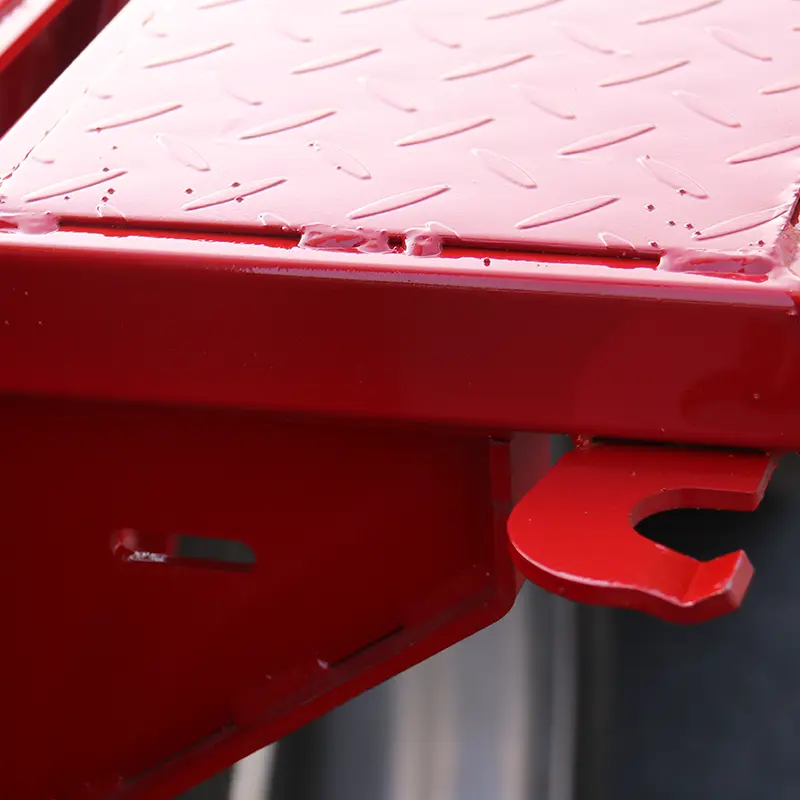

A: The floor is constructed using 3mm, 4mm, or 5mm diamond steel plates, ensuring a durable and non-slip surface for heavy cargo.
Q: Are there different suspension options?
A: Yes, depending on your transport environment, you can choose between mechanical suspension or air suspension systems.
