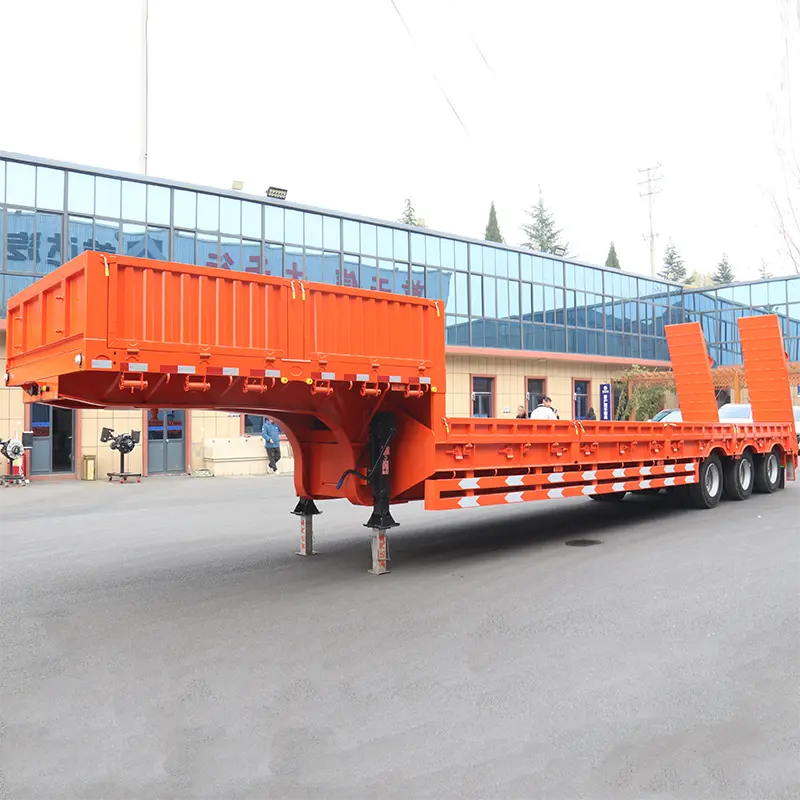

China 3 Axle Low Bed Semi Trailer Manufacturer, SKD
Product Description
Technical Specifications
| Name | Low bed semi trailer |
| Dimension | 13750*3000*1600mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Functions | Transport common goods, heavy equipment like excavator etc |
Key Features
Structure Design
The series of low flat semi-trailers features flat type, concave beam type, and tire exposed type structures. The longitudinal beam adopts flat or gooseneck types. The frame is ladder type with an I-shaped longitudinal beam section, ensuring high stiffness and strength.
Stable Transportation
The cargo platform main plane is designed low to ensure smoothness during transportation. It is perfectly suited for carrying various construction machinery, large-scale equipment, and steel materials.
Advanced Suspension
Equipped with three-axis balance, two-axis balance, or rigid suspension. Mass balance blocks installed between front and rear leaf springs ensure equal deflection and balanced axes for optimal load distribution.
Frequently Asked Questions
What is the maximum payload of the low bed semi trailer?
The trailer is available in multiple payload capacities including 40 ton, 60 ton, and 80 ton options to suit different heavy-duty transport needs.
What types of equipment can this trailer transport?
It is designed to transport common goods as well as heavy machinery such as excavators, construction equipment, and large steel components.
Which axle and king pin brands are used?
We utilize high-quality components including Fuwa or BPW axles (13T/16T/20T) and 2-inch or 3.5-inch JOST brand king pins for maximum durability.
What suspension options are available?
Customers can choose between mechanical suspension and air suspension systems depending on their specific road conditions and cargo sensitivity.
Is the trailer frame customizable?
Yes, the dimensions (standard 13750*3000*1600mm) can be customized, and the structure can be configured as flat type, concave beam, or tire exposed type.
What material is used for the trailer floor?
The floor is constructed using high-strength diamond steel plates with thickness options of 3mm, 4mm, or 5mm to provide a non-slip and durable surface.
