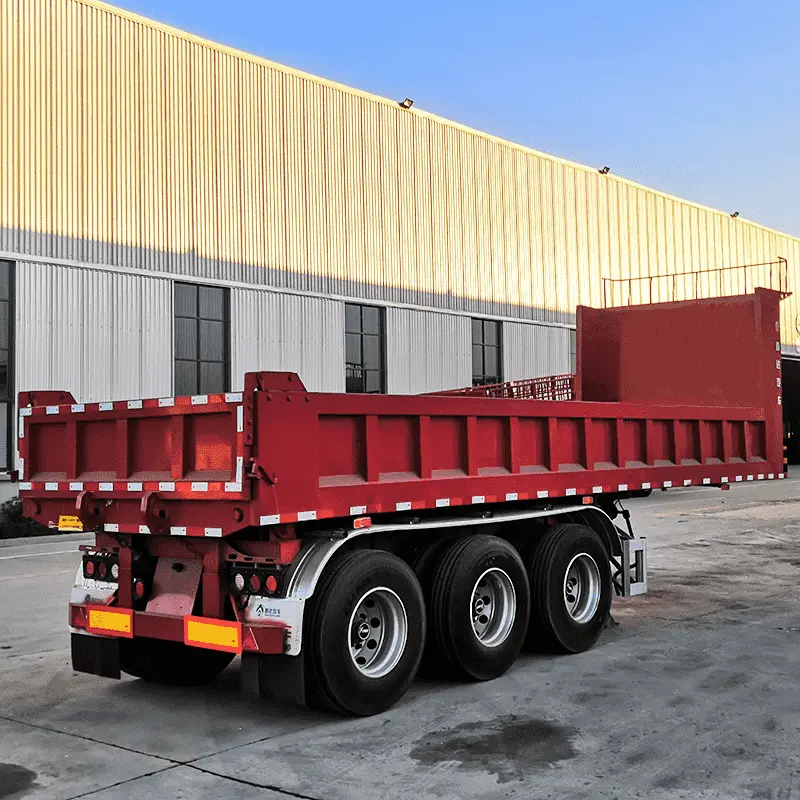

High-Quality 35CBM Hydraulic Dump Trailer Factories, CKD
Product Description
Product Specifications
| Name | Rear dump semi trailer |
| Dimension | 8700*2550*3550mm (side wall customized) |
| Payload | 50ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm smooth plate |
| Functions | Transport construction materials such as sand, clay, and plate materials etc. |
Detailed Overview
The 6 axle dump trailer adopts high strength steel to make it durable when loading sand, small stones, or rocks. This 6 axle 45cbm dump trailer is equipped with a reliable hydraulic HYVA cylinder.
The loading capacity ranges from 40t, 60t, to 80t. Various models are available including 2, 3, 4, 5, and 6 Axles configurations to suit different transport requirements.
Customization options are available for the tipper trailers according to special needs, such as U shape dump, end dump, side tipper, and container tippers.
Features include a double-plate main beam for heavy-duty performance, providing stronger carrying capacity and reducing the risk of damage during intensive use.
Frequently Asked Questions
What materials can this dump semi-trailer transport?
It is primarily designed to transport construction materials such as sand, clay, rocks, and various plate materials.
What are the available payload capacities?
We offer different models with loading capacities of 40 tons, 60 tons, and up to 80 tons depending on the configuration.
Can I choose the number of axles for my trailer?
Yes, models are available in 2, 3, 4, 5, and 6-axle configurations to meet your specific weight distribution needs.
What makes the main beam of the heavy-duty trailer special?
The trailer features a double-plate main beam which provides significantly stronger carrying capacity and enhanced durability for heavy-duty tasks.
Are there different shapes of dump trailers available?
Yes, we provide several customization options including U-shape dumps, end dumps, side tippers, and container tippers.
What type of hydraulic system is used?
The trailers are equipped with high-quality and reliable hydraulic HYVA cylinders for efficient tipping operations.
