High-Quality 4Axle Rear Dump Semi Trailer Supplier, Factory
Product Description
📋 Product Specifications
| Name | Rear dump semi trailer |
| Dimension | 8700*2550*3550mm (side wall customized) |
| Payload | 50ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm smooth plate |
| Functions | Transport construction materials such as sand, clay, and plate materials etc. |
🚛 Key Features & Benefits
This 6 axle dump trailer adopts high strength steel to ensure maximum durability when loading sand, small stones, or heavy rocks. Equipped with a reliable hydraulic HYVA cylinder, it offers smooth and efficient tipping operations.
Loading Capacity: We offer various models with capacities of 40t, 60t, and 80t. Our range includes 2, 3, 4, 5, and 6 Axles models to suit different transportation requirements.

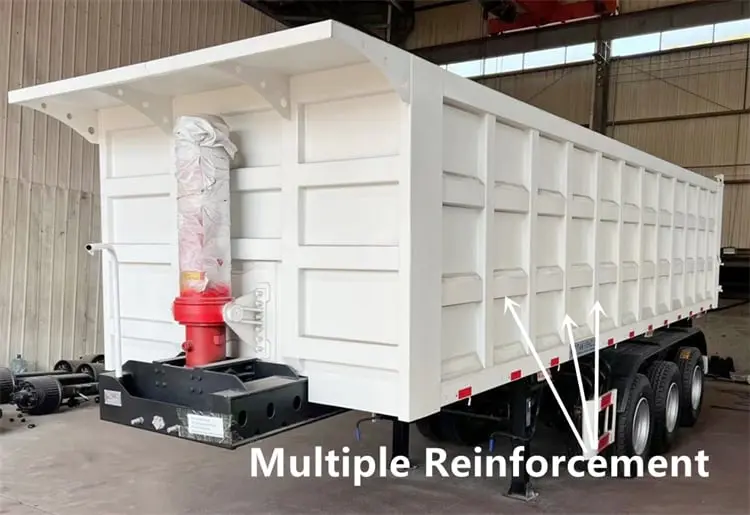

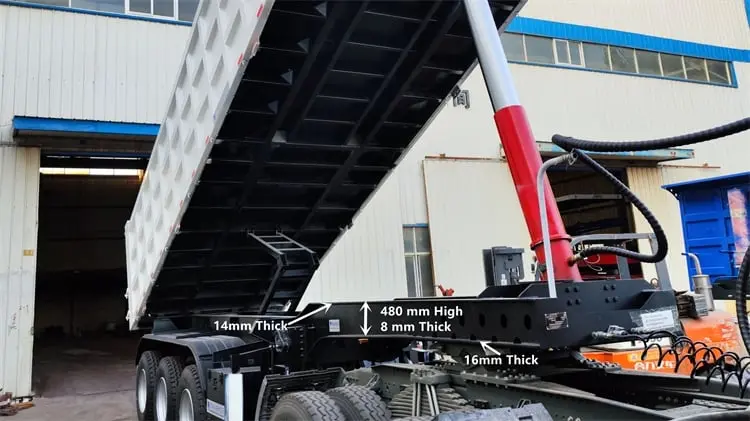

The heavy-duty dump trailer features a double-plate main beam, providing significantly stronger carrying capacity and resistance to damage under extreme conditions.
Customization Options: Trailers can be customized according to specific needs, including U-shape dumps, end dumps, side tippers, and container tippers.
❓ Frequently Asked Questions
1. What is the maximum payload of the 6-axle dump trailer?
The 6-axle dump trailer is designed for heavy-duty tasks with payload capacities ranging from 40 tons to 80 tons, depending on the specific configuration.
2. Can the tipper trailer body be customized?
Yes, we provide full customization options including U-shape designs, end dumps, side tippers, and container tippers to meet your specific cargo requirements.
3. What kind of hydraulic system is used for tipping?
The trailers are equipped with high-quality, reliable hydraulic HYVA cylinders, known for their durability and performance in demanding environments.
4. What materials are suitable for transport with this trailer?
These trailers are ideal for transporting construction materials such as sand, clay, small stones, rocks, and various plate materials.
5. How does the double-plate main beam benefit the trailer?
The double-plate main beam design provides enhanced structural integrity and a higher carrying capacity, making it much more resistant to bending or damage during heavy-duty use.
6. What suspension and axle brands are available?
We offer both mechanical and air suspension options. Axle brands include industry-standard Fuwa and BPW, with various load ratings available (13T/16T/20T).
