China Heavy Machine Transport Rear Dump Semi Trailer Supplier, Factory

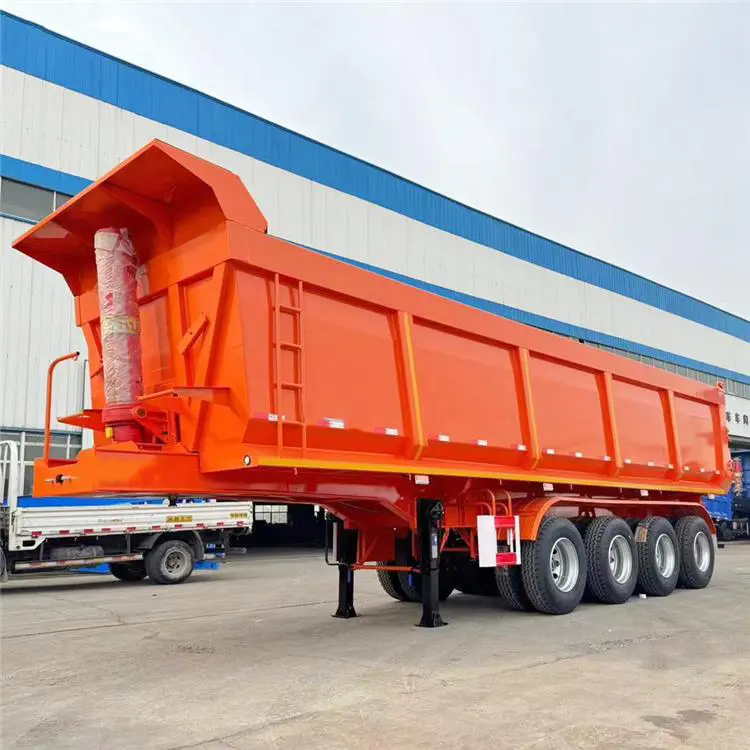

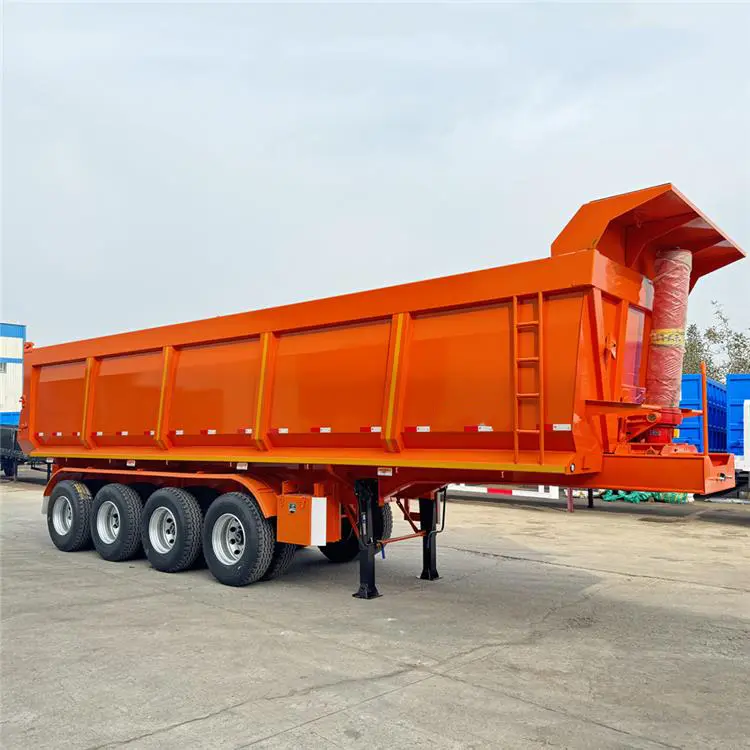

Rear dump semi trailer is widely used in sandstone plant, construction site and mine, transport sand, gravel, earthwork and mining. They will help you to carry and offload bulk goods in a very easy and efficient manner. they are applicable in the construction, agriculture, and recycling industries and many other areas.

If you have any questions, feel free to contact us.

Send Inquiry

Product Description

Technical Specifications

Name	Rear dump semi trailer
Dimension	870025503550mm (side wall customized)
Payload	50ton, 80ton
Tire	11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles	13T/16T/20T Fuwa, BPW
King Pin	2 inch or 3.5 inch JOST Brand
Brake System	KEMI, WABCO with Four double Two single air chamber
Landing Gears	Standard 28 Ton, Fuwa, JOST
Suspension	Mechanical suspension, Air suspension
Floor	3mm, 4mm, 5mm smooth plate
Functions	Transport construction materials such as sand, clay, and plate materials etc.

Key Features & Structural Advantages

🏗️

Heavy-Duty Girder Double-slab girders design provides stronger bearing capacity and prevents breaking under extreme loads.

🔧

Reinforced Sub-beam System Four sub-beams positioned under the bottom plate with triangular plate reinforcements to prevent deformation and cracking.

⚖️

Cross Balance Beam Front and rear balance beams increase body stability and prevent the trailer from rolling over during operation.

🔄

Independent Flip Brackets Four heavy-duty independent flip brackets ensure firm dumping. Features a double buckle design on the rear door for enhanced security.

🛣️

Premium Axle & Suspension Equipped with world-class BPW or Fuwa axle systems for maximum service life and quality assurance.

Frequently Asked Questions

What is the maximum payload for these rear dump trailers?

Our rear dump semi trailers are designed for heavy-duty tasks with standard payload capacities of 50 tons and 80 tons, depending on the configuration.

Can the side wall dimensions be customized?

Yes, while the standard dimensions are 8700*2550*3550mm, the side wall height and thickness can be customized to meet specific transport requirements.

Which brands of axles and brake systems are used?

We use industry-leading components including BPW and Fuwa axles, JOST king pins, and KEMI or WABCO brake systems for optimal safety and durability.

What materials are suitable for transport in this trailer?

These trailers are ideal for transporting construction materials such as sand, clay, gravel, and various plate materials.

How is the trailer protected against deformation?

The structure includes double-slab main girders and reinforced sub-beams with triangular plates to ensure the floor and frame remain stable under heavy stress.

What types of suspension systems are available?

Clients can choose between traditional mechanical leaf spring suspension or air suspension systems based on their road conditions and cargo needs.
