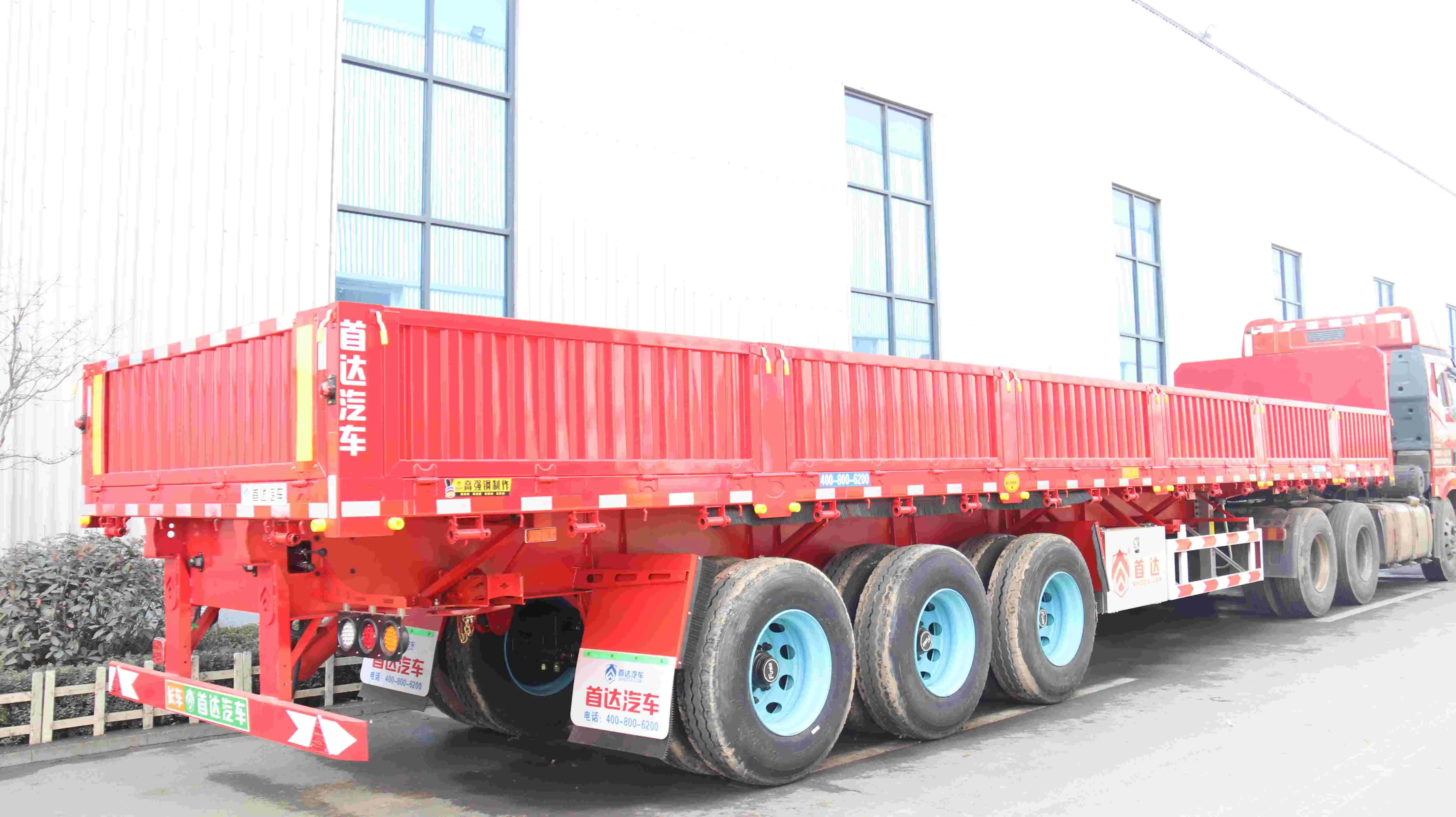

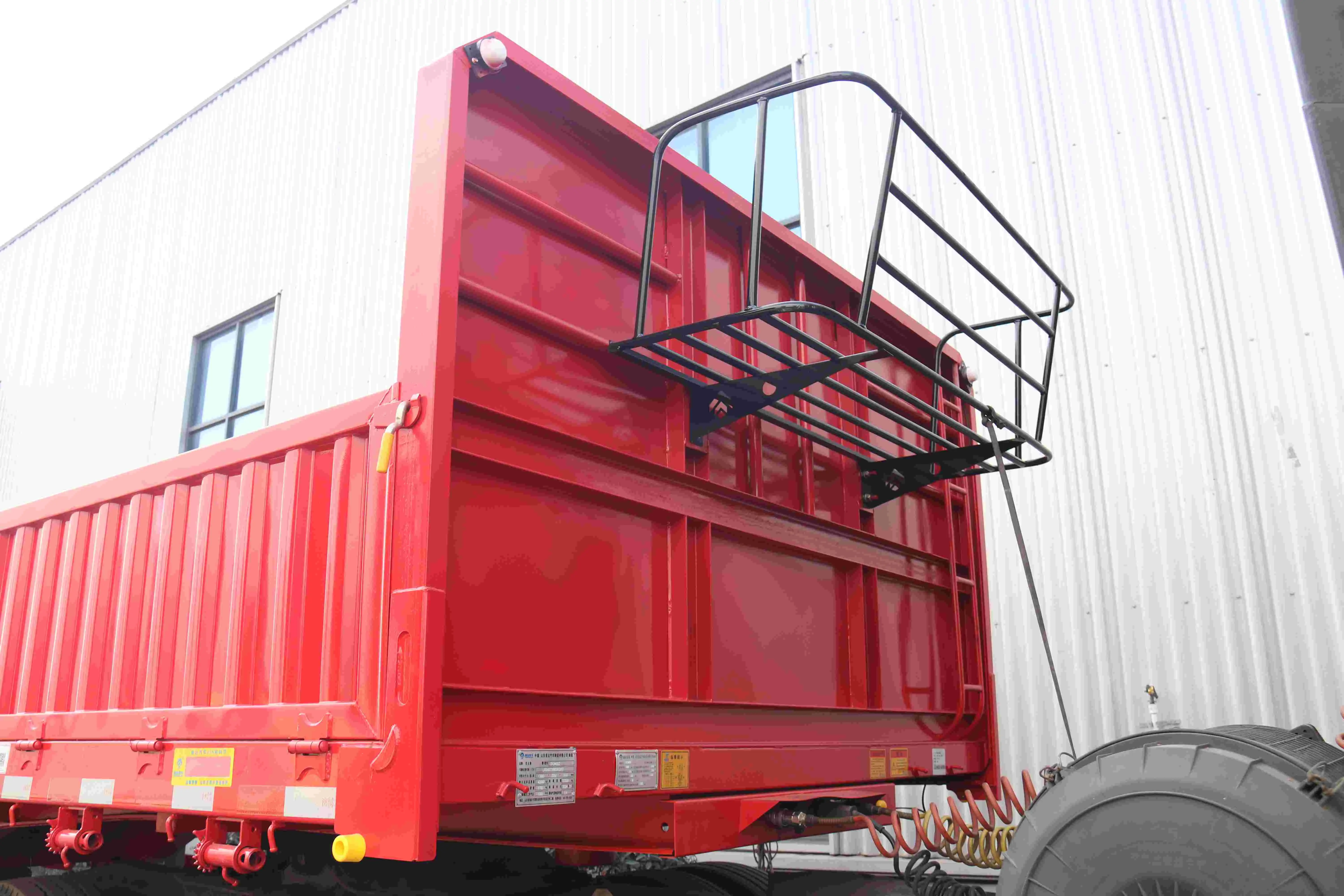

SHODAILER High Durable Side Dump Semi Trailer Manufacturer, Manufacturers
Product Description
Product Technical Specifications
| Name | Side dump semi trailer |
| Dimension | 12500*2550*2700mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Side Wall | High strength T980, Height can be 60mm/80mm/100mm or customized |
| Functions | Transport stone and sand, coal, grain and corn etc |
🚚
High Capacity
Provides more carrying space and customized volume options without increasing vehicle length.
⚙️
Enhanced Efficiency
Outward-opening side bodies allow for rapid loading and unloading of heavy cargo.
🛡️
Durable Build
4mm thick sidewalls and bottom plates prevent deformation during heavy-duty operations.
Side tipper trailer can provide more carrying space and carrying capacity. Since the side of the vehicle body can be opened outwards, it is easy to load and unload goods up and down, and the loading volume can be increased without increasing the length of the vehicle, thereby improving transportation efficiency.
Side Dump Trailer for sale suitable for large workplaces, Side Tipper Trailer carrying capacity can be customized according to your need. The side dump trailer thickness of the sidewall and bottom plate is 4 mm, which promise the cargo will not deform even the trailer carries heavy goods.
Frequently Asked Questions
Q: What materials are suitable for transportation with a side dump trailer?
A: These trailers are ideal for transporting bulk materials such as stone, sand, coal, grain, and corn.
Q: What are the available payload options?
A: We offer multiple payload capacities including 40 ton, 60 ton, and 80 ton options to suit different transport needs.
Q: Can the dimensions of the side tipper be customized?
A: Yes, while the standard dimension is 12500*2550*2700mm, we can provide customized dimensions and side wall heights (60mm/80mm/100mm) based on requirements.
Q: What ensures the durability of the trailer under heavy loads?
A: The trailer uses high-strength T980 steel for the side walls, and both the sidewall and bottom plate are 4mm thick to prevent deformation.
Q: What brands of components are used in the braking and axle systems?
A: The trailers are equipped with high-quality components from brands like Fuwa or BPW for axles, and KEMI or WABCO for the braking system.
Q: What type of suspension is available?
A: You can choose between mechanical suspension and air suspension depending on your specific road conditions and load requirements.
