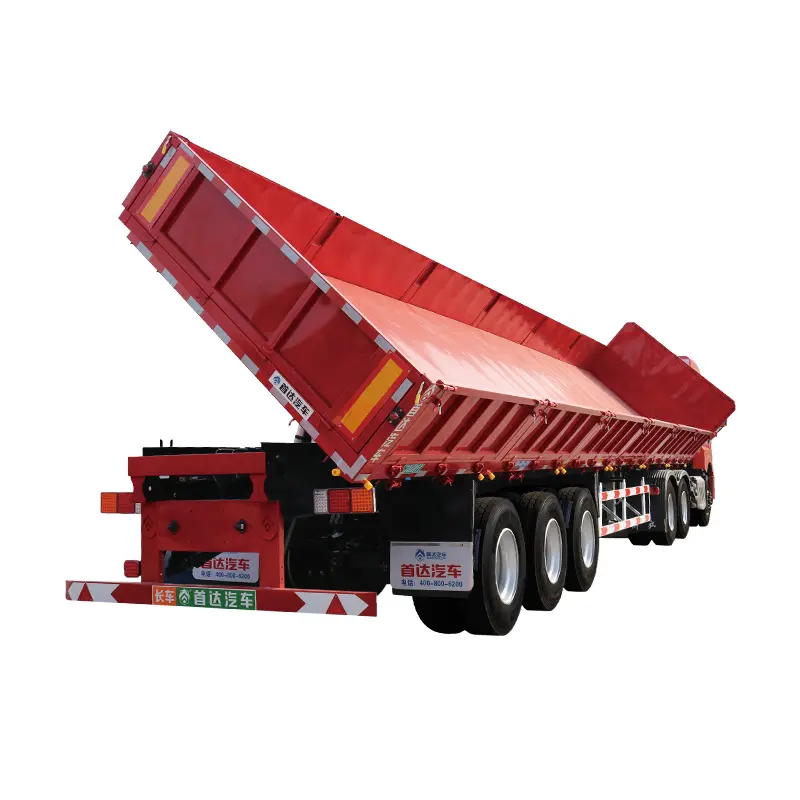

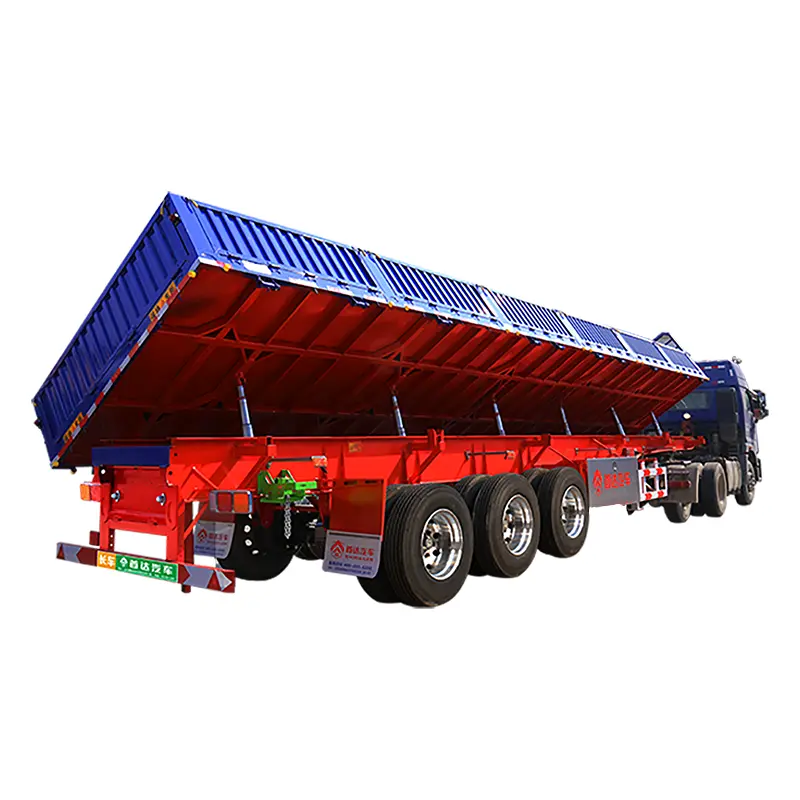

China Side Dump Semi Trailer For Transporting Sand Suppliers, Factories
Product Description
| Name | Side dump semi trailer |
| Dimension | 12500*2550*2700mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Side Wall | High strength T980, Height can be 60mm/80mm/100mm or customized |
| Functions | Transport stone and sand, coal, grain and corn etc |
Competitive Advantage - Side dump semi trailer
We employ a frame crafted from high-strength structural steel, chosen for its exceptional durability and resilience. Our assembly process employs advanced Gantry-type double-head welding machines, meticulously ensuring every joint is securely bonded.
This meticulous approach not only minimizes the risk of missing or incomplete welds but also significantly enhances welding accuracy, resulting in a robust and long-lasting structure capable of withstanding rigorous usage.
When it comes to essential components like axles and suspension systems, we exclusively utilize reputable and well-known brands. These components are selected for their proven track record of high performance and reliability.
Our side tipper trailers are equipped with high-quality cylinders, meticulously designed and tested to meet stringent safety standards. This ensures reliability and enhances safety during operation.
Furthermore, our range of tipper semi-trailers offers extensive customization options, allowing customers to tailor their trailers to meet specific requirements from size and capacity to additional features.
Frequently Asked Questions
Q: What materials are used for the trailer frame?
A: The frame is crafted from high-strength structural steel and assembled using advanced Gantry-type double-head welding machines for maximum durability.
Q: Can I customize the dimensions of the side dump trailer?
A: Yes, the dimensions (such as 12500*2550*2700mm) and the height of the side wall are fully customizable to meet your specific needs.
Q: What is the maximum payload capacity?
A: We offer different configurations with payload capacities of 40 tons, 60 tons, and up to 80 tons.
Q: What brands of components are used in the trailer?
A: We use world-renowned brands such as Fuwa/BPW for axles, JOST for landing gears and king pins, and WABCO for the brake system.
Q: What type of cargo is this trailer suitable for?
A: It is designed for transporting heavy bulk goods such as stone, sand, coal, grain, and corn.
Q: How do you ensure the safety of the hydraulic tipping system?
A: Our trailers are equipped with high-quality cylinders that are rigorously tested to meet strict safety standards for secure cargo unloading.
