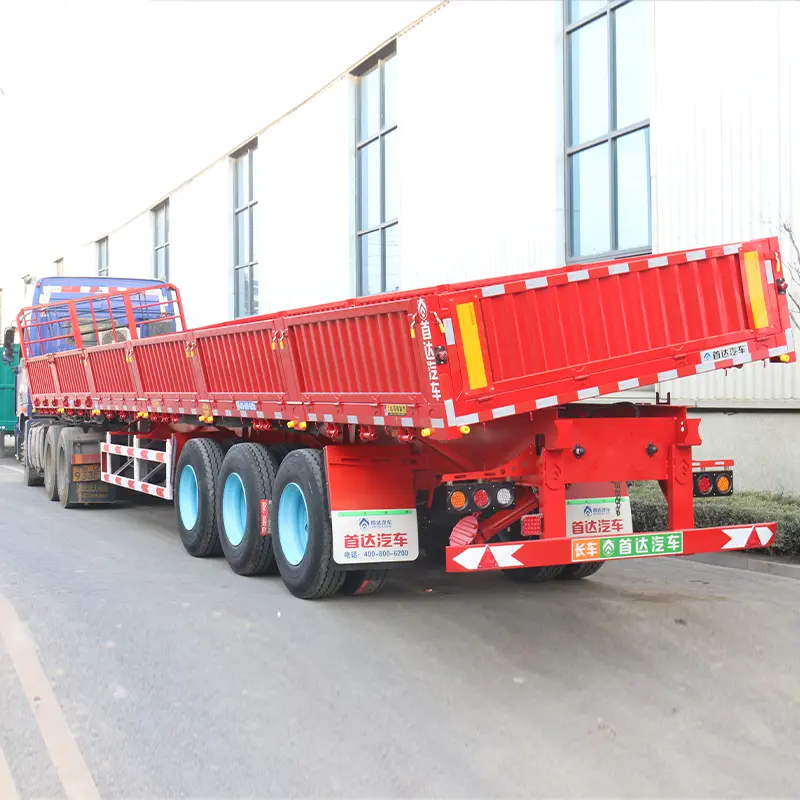

China Multi Functional Side Dump Semi Trailer Suppliers, SKD
Product Description
📋 Technical Specifications
| Name | Side dump semi trailer |
| Dimension | 12500*2550*2700mm (customized) |
| Payload | 40ton, 60ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong. |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |
| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm diamond steel plate |
| Side Wall | High strength T980, Height can be 60mm/80mm/100mm or customized |
| Functions | Transport stone and sand, coal, grain and corn etc |
🚛 Product Overview
Side dump semi trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.
The innovative design of the side dump mechanism provides enhanced stability during the unloading process. It is highly efficient for large-scale logistics involving bulk materials including coal, grain, and various agricultural products.

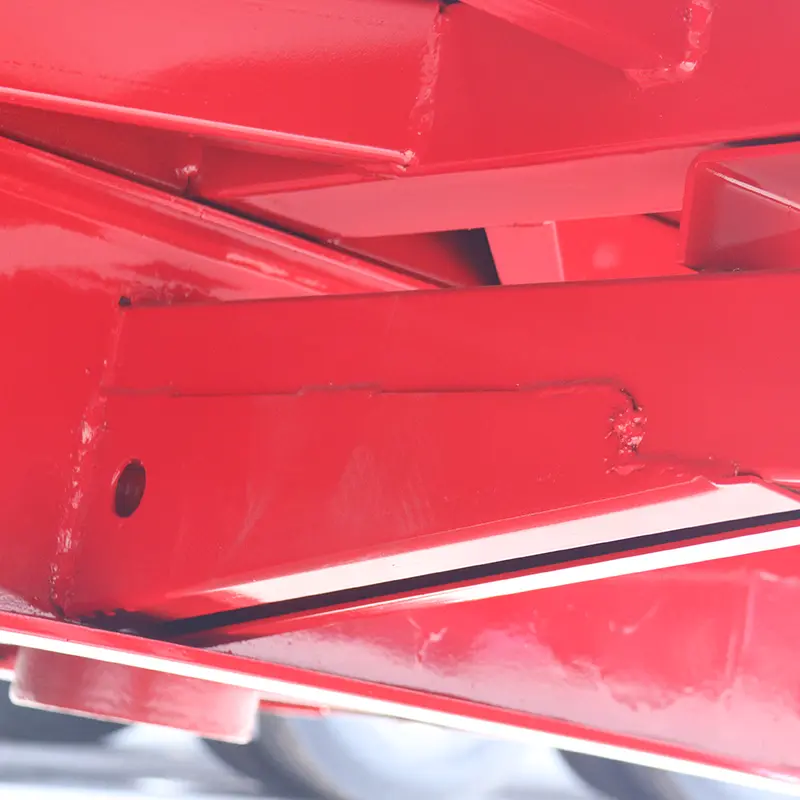

🖼️ Visual Display
❓ Frequently Asked Questions
What are the primary advantages of a side dump semi trailer?
Side dump trailers offer superior stability on uneven terrain during unloading compared to rear dumps. They also allow for faster cycle times and can unload in areas with overhead height restrictions.
Can the payload capacity be customized?
Yes, we offer standard payload options of 40, 60, and 80 tons, but the structure can be reinforced or customized to meet your specific heavy-duty transport requirements.
What types of materials are best suited for side dumping?
These trailers are ideal for bulk materials like large stones, sand, construction debris, coal, grain, and corn. The side-tilting mechanism ensures a clean discharge of these materials.
Is the trailer compatible with different suspension systems?
Absolutely. Depending on your road conditions and budget, you can choose between a heavy-duty mechanical leaf spring suspension or a smoother air suspension system.
What is the standard material used for the floor and walls?
We use high-strength T980 steel for the side walls and durable diamond steel plates for the floor (available in 3mm to 5mm thickness) to ensure long-term durability against abrasive cargo.
What braking systems are installed for safety?
The trailers are equipped with world-class braking systems like WABCO or KEMI, featuring multiple air chambers to ensure reliable stopping power even under full load conditions.
