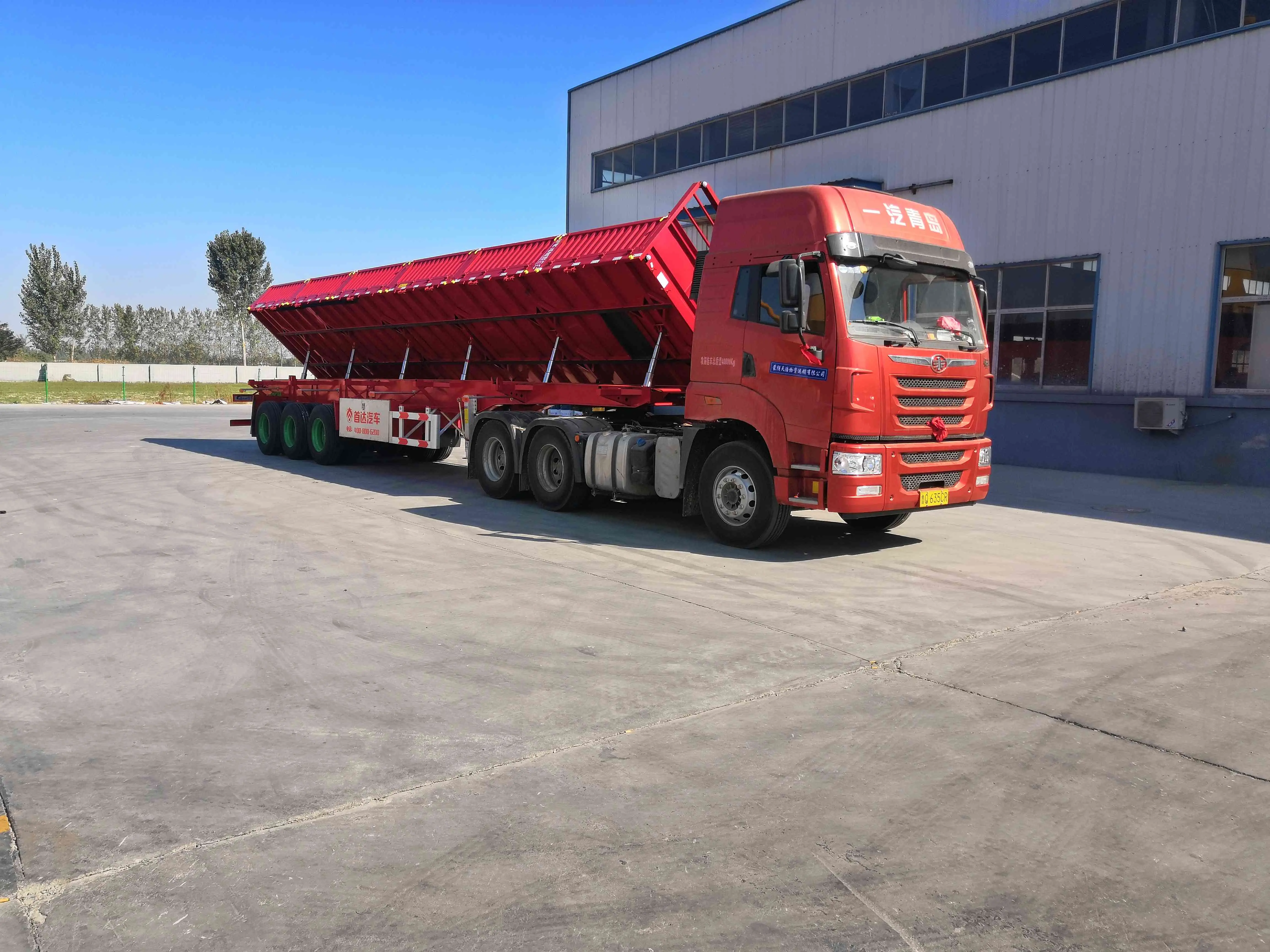

High-Quality Factory Direct Rear Dump Semi-Trailer – Ideal for Self-Unloading Transport, Customizable Sizes Manufacturer, Factories
Product Description
Product Specifications
| Name | Rear dump semi trailer |
| Dimension | 8700*2550*3550mm (side wall customized) |
| Payload | 50ton, 80ton |
| Tire | 11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong |
| Axles | 13T/16T/20T Fuwa, BPW |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | KEMI, WABCO with Four double Two single air chamber |

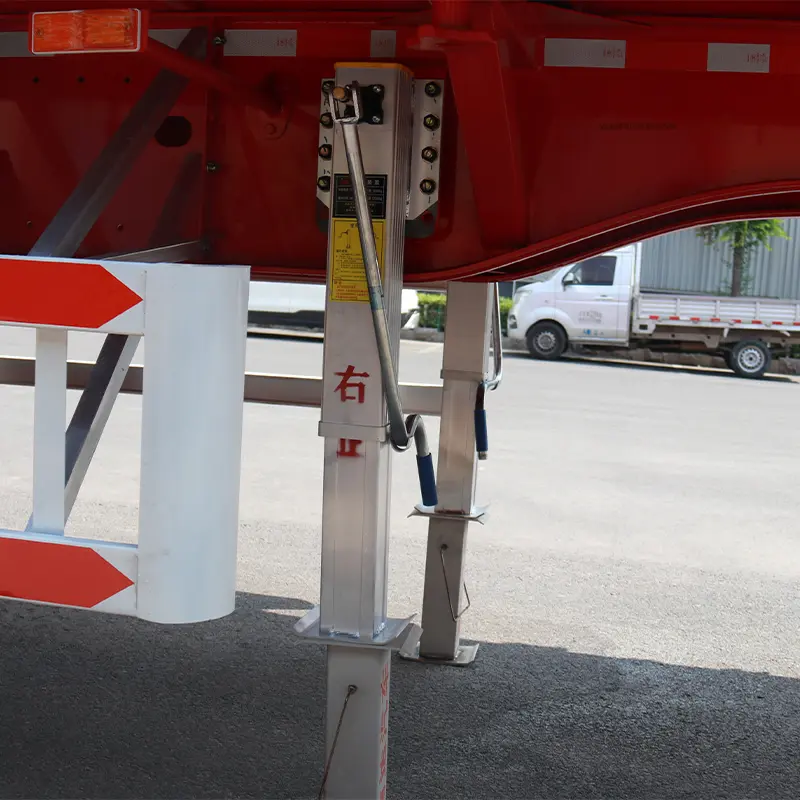

| Landing Gears | Standard 28 Ton, Fuwa, JOST |
| Suspension | Mechanical suspension, Air suspension |
| Floor | 3mm, 4mm, 5mm smooth plate |
| Functions | Transport construction materials such as sand, clay, and plate materials etc. |
Key Features & Design
🏗️Main Girder Design
Heavy-duty models utilize double-slab girders. This provides a significantly stronger bearing capacity, ensuring the girder is highly resistant to breaking under heavy loads.

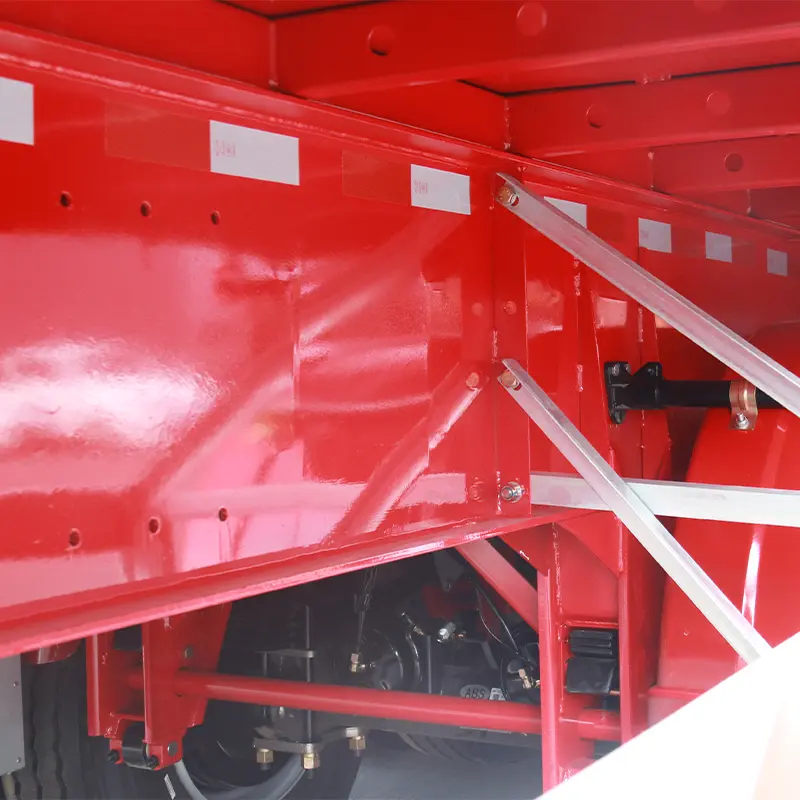

🔧Reinforced Sub-beam
Equipped with 4 sub-beams set under the bottom plate for anti-distortion and increased strength. Intersections are reinforced with triangular plates to prevent deformation and cracking.
⚖️Cross Balance Beam
Located at the front and rear of the frame, the balance beam prevents the 3 axle 60 ton tipper trailers from rolling over and significantly increases body stability.
🔒Heavy-Duty Flip Brackets
Features 4 independent heavy-duty flip brackets for stable unloading. The rear door adopts a double buckle design for enhanced security during transit.
🚛Premium Axle & Suspension
Equipped with world-famous brands like BPW and Fuwa. These systems come with quality assurance, ensuring a longer service life and lower maintenance costs.
Visual Presentation
Frequently Asked Questions (FAQ)
Q1: What is the maximum payload capacity for this rear dump trailer?
A: Depending on the configuration, our rear dump semi trailers can handle payloads ranging from 50 tons to 80 tons, specifically designed for heavy construction materials.
Q2: Can the side wall dimensions be customized?
A: Yes, while our standard dimension is 8700*2550*3550mm, the side wall height and thickness can be customized to meet your specific cargo requirements.
Q3: What types of axles are used in these tipper trailers?
A: We use high-quality axles from renowned brands like Fuwa and BPW, available in 13T, 16T, and 20T capacities to ensure maximum durability.
Q4: Is the trailer suitable for off-road construction sites?
A: Absolutely. The heavy-duty mechanical suspension and reinforced sub-beam design are specifically engineered to handle the torsional stress of uneven terrain found at construction sites.
Q5: What braking system is installed for safety?
A: The trailer is equipped with premium KEMI or WABCO braking systems featuring a combination of four double and two single air chambers for reliable stopping power.
Q6: What material is used for the floor plate?
A: The floor is constructed from high-strength smooth plates, available in 3mm, 4mm, or 5mm thickness depending on the abrasiveness of the materials you intend to transport.
