High-Quality Make way at the unloading zone! Empty in 3 seconds, then we’re back to work! Factories, CKD

All on-site loading and unloading work is handled by us, and the three-shift operation is ready to go non-stop. Want to unload directly from the truck? Just hit the button, and the cargo is dumped in one go. You can drive away in less than 10 seconds. With dual hydraulic cylinders lifting the bed, even on uneven ground, the trailer stays as stable as a rock. The frame's four longitudinal beams are built to lastâ€”no problem with stone impacts or excavator operations. While other trucks are still struggling to set up their support legs, you've already made a return trip.Â

Send Inquiry

Product Description

🚚

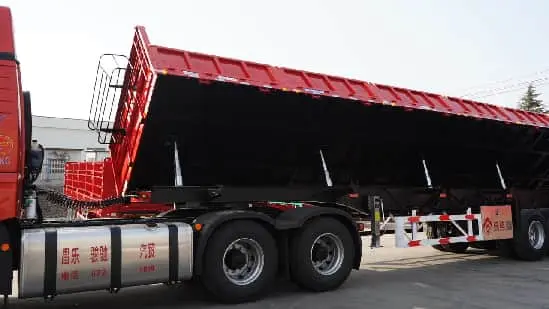

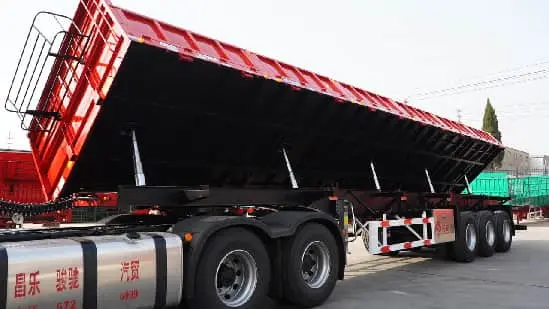

This side-tipping semi-trailer is constructed from high-strength steel, boasting a robust and durable structure with exceptional load-bearing capacity, making it particularly well-suited for the transportation of heavy-duty cargo and bulk materials. Its innovative side-tipping design revolutionizes the unloading process, enabling rapid and efficient cargo discharge. This not only significantly cuts down on labor costs and boosts overall work efficiency, but also drastically reduces the time spent on loading and unloading operations.

🛡️ Stability & Safety

The vehicle body has undergone meticulous optimization, ensuring stable and safe performance across a wide range of road conditions. The scientifically calculated center of gravity effectively minimizes cargo shifting and tilting.

⚙️ Advanced Suspension

The brand-new suspension system is engineered to handle even higher loads, maintaining the trailer's stability and reliability during long-haul transportation.

Whether you're operating on construction sites, in mining operations, or fulfilling other heavy-duty cargo transportation requirements, this side-tipping semi-trailer delivers robust logistical support and drives higher operational profitability for your business.

Name	Side dump semi trailer
Dimension	1250025502700mm (customized)
Payload	40ton, 60ton, 80ton
Tire	11R22.5, 12R22.5, 315/80R22.5, Triangle, Double coin, Linglong.
Axles	13T/16T/20T Fuwa, BPW
King Pin	2 inch or 3.5 inch JOST Brand
Brake System	KEMI, WABCO with Four double Two single air chamber
Landing Gears	Standard 28 Ton, Fuwa, JOST
Suspension	Mechanical suspension, Air suspension
Floor	3mm, 4mm, 5mm diamond steel plate
Side Wall	High strength T980, Height can be 60mm/80mm/100mm or customized
Functions	Transport stone and sand, coal, grain and corn etc

Frequently Asked Questions

What are the primary advantages of a side tipping semi-trailer?

The side tipping design allows for rapid unloading in confined spaces or linear discharge sites, significantly increasing efficiency compared to traditional rear-end dumpers.

Can the dimensions and payload be customized?

Yes, the trailer dimensions can be customized (standard 12500mm length) and payload capacities are available in 40-ton, 60-ton, and 80-ton configurations to meet specific needs.

What materials are used for the trailer floor?

The floor is constructed from high-durability diamond steel plate with thickness options of 3mm, 4mm, or 5mm to ensure impact resistance during heavy loading.

What types of suspension systems are available?

We offer both mechanical suspension for heavy-duty rugged terrains and air suspension for a smoother ride and better cargo protection during long-haul transport.

Is the trailer safe for high-center-of-gravity loads?

The trailer features a scientifically calculated center of gravity and optimized body structure to minimize shifting and ensure stability across various road conditions.

What brands of components are used for the axles and braking?

We utilize industry-leading brands including Fuwa and BPW for axles, and KEMI or WABCO for the air chamber braking systems.
